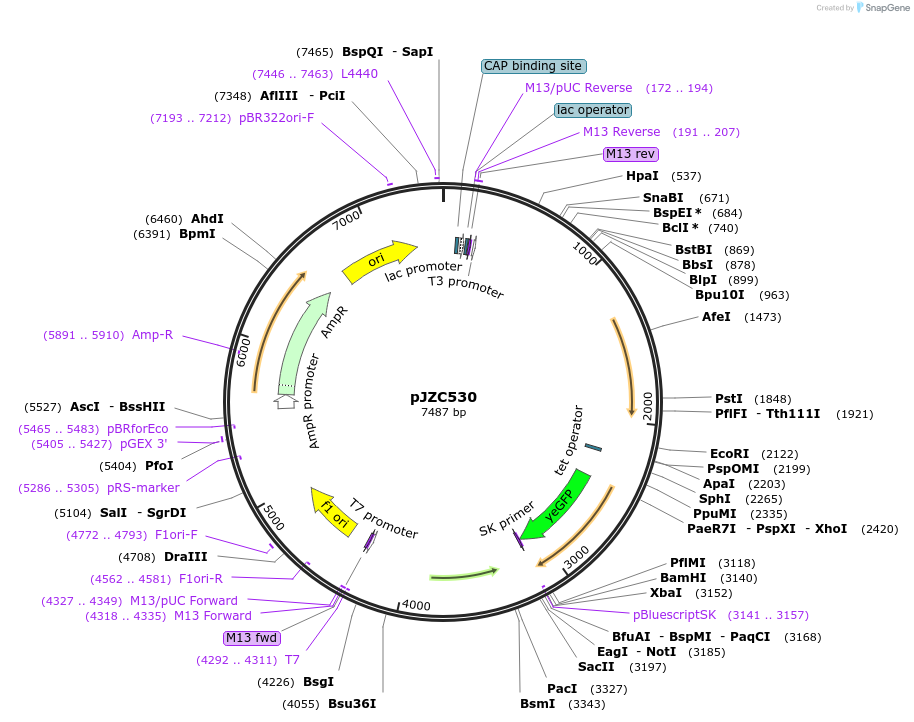

pJZC530
(Plasmid #135434)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 135434 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pNH604
  • Total vector size (bp) 7494
  • Vector type
    Yeast Expression
  • Selectable markers
    TRP1

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    pTETO1_Venus
  • Species
    Synthetic
  • Insert Size (bp)
    979
  • Promoter pTETO1

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GTTTCTCAAAAATATTCATACAGGTTAGC
  • 3′ sequencing primer AATATCGCACTCACGTAAACACTTAATC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJZC530 was a gift from Jesse Zalatan (Addgene plasmid # 135434 ; http://n2t.net/addgene:135434 ; RRID:Addgene_135434)

  • For your References section:

    CRISPR-Cas-Mediated Chemical Control of Transcriptional Dynamics in Yeast. Cunningham-Bryant D, Sun J, Fernandez B, Zalatan JG. Chembiochem. 2019 Jun 14;20(12):1519-1523. doi: 10.1002/cbic.201800823. Epub 2019 Apr 26. 10.1002/cbic.201800823 PubMed 30710419
