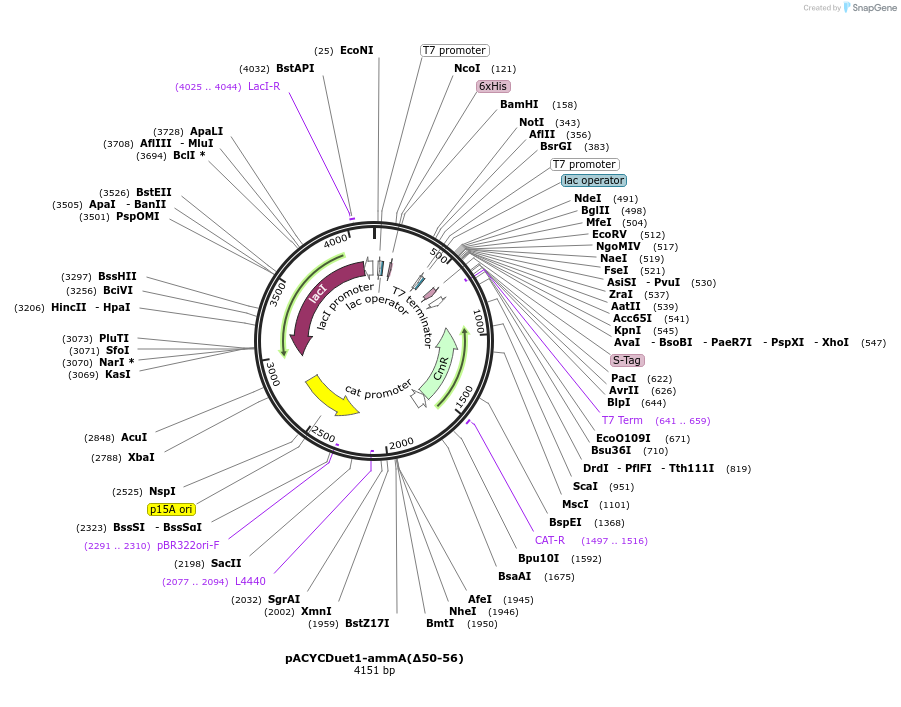

pACYCDuet1-ammA(∆50-56)
(Plasmid #134684)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 134684 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pACYCDuet1
  • Vector type
    Bacterial Expression
  • Selectable markers
    ChlR

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ammA(del50-56)
  • Species
    Streptomyces sp. CNR 698
  • Insert Size (bp)
    150
  • Mutation
    deletion of amino acids 50-56
  • Promoter T7
  • Tag / Fusion Protein
    • His6 (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (destroyed during cloning)
  • 3′ cloning site XhoI (destroyed during cloning)
  • 5′ sequencing primer ACYCDuetUP1
  • 3′ sequencing primer DuetDOWN1
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pACYCDuet1-ammA(∆50-56) was a gift from Wilfred van der Donk (Addgene plasmid # 134684 ; http://n2t.net/addgene:134684 ; RRID:Addgene_134684)

  • For your References section:

    Use of a scaffold peptide in the biosynthesis of amino acid-derived natural products. Ting CP, Funk MA, Halaby SL, Zhang Z, Gonen T, van der Donk WA. Science. 2019 Jul 19;365(6450):280-284. doi: 10.1126/science.aau6232. 10.1126/science.aau6232 PubMed 31320540
