Addgene

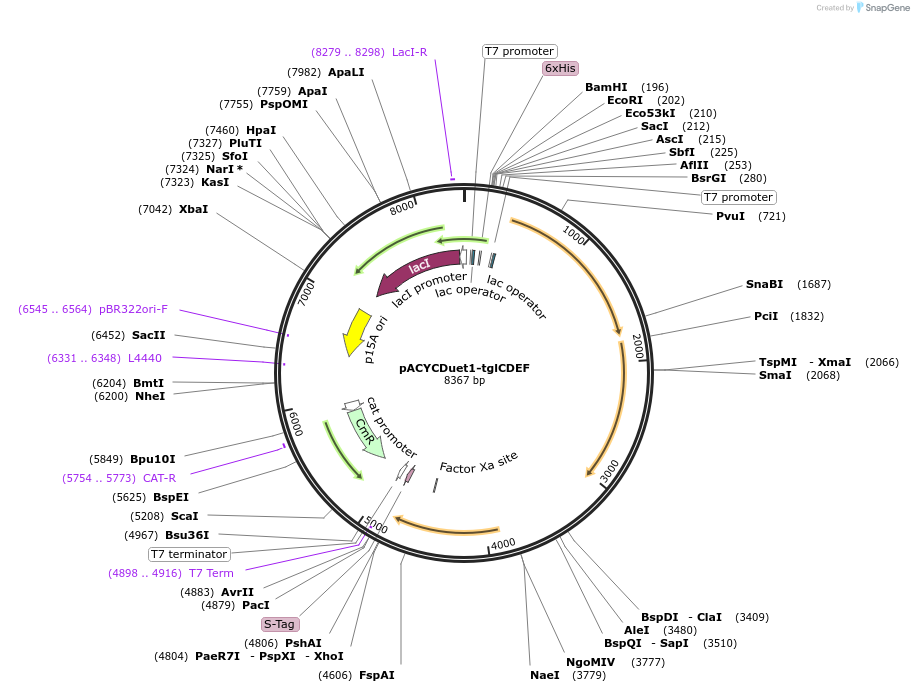

pACYCDuet1-tglCDEF
(Plasmid #134677)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 134677 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pACYCDuet1
  • Vector type
    Bacterial Expression
  • Selectable markers
    ChlR

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    TglC
  • Species
    Pseudomonas syringae pv. maculicola str. ES4326
  • Insert Size (bp)
    1407
  • GenBank ID
    EGH61603.1
  • Promoter T7

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (destroyed during cloning)
  • 3′ cloning site XhoI (destroyed during cloning)
  • 5′ sequencing primer ACYCDuetUP1
  • 3′ sequencing primer DuetDOWN1
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    TglD
  • Species
    Pseudomonas syringae pv. maculicola str. ES4326
  • Insert Size (bp)
    1212
  • GenBank ID
    EGH61604.1
  • Promoter T7

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (destroyed during cloning)
  • 3′ cloning site XhoI (destroyed during cloning)
  • 5′ sequencing primer ACYCDuetUP1
  • 3′ sequencing primer DuetDOWN1
  • (Common Sequencing Primers)

Gene/Insert 3

  • Gene/Insert name
    TglE
  • Species
    Pseudomonas syringae pv. maculicola str. ES4326
  • Insert Size (bp)
    744
  • GenBank ID
    EGH61605.1
  • Promoter T7

Cloning Information for Gene/Insert 3

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (destroyed during cloning)
  • 3′ cloning site XhoI (destroyed during cloning)
  • 5′ sequencing primer ACYCDuetUP1
  • 3′ sequencing primer DuetDOWN1
  • (Common Sequencing Primers)

Gene/Insert 4

  • Gene/Insert name
    TglF
  • Species
    Pseudomonas syringae pv. maculicola str. ES4326
  • Insert Size (bp)
    918
  • GenBank ID
    EGH61606.1
  • Promoter T7

Cloning Information for Gene/Insert 4

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (destroyed during cloning)
  • 3′ cloning site XhoI (destroyed during cloning)
  • 5′ sequencing primer ACYCDuetUP1
  • 3′ sequencing primer DuetDOWN1
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pACYCDuet1-tglCDEF was a gift from Wilfred van der Donk (Addgene plasmid # 134677 ; http://n2t.net/addgene:134677 ; RRID:Addgene_134677)
  • For your References section:

    Use of a scaffold peptide in the biosynthesis of amino acid-derived natural products. Ting CP, Funk MA, Halaby SL, Zhang Z, Gonen T, van der Donk WA. Science. 2019 Jul 19;365(6450):280-284. doi: 10.1126/science.aau6232. 10.1126/science.aau6232 PubMed 31320540
