pcDNA3.1.Gα11-LgB97
(Plasmid
#134361)
-
PurposeNanoluc complementation assay. Expression of Gα11 protein fused with the LgBiT(LgB)of the nanoluciferase inserted between residues 97 and 98 of Gα11. Addition of the HA epitope at N terminus of Gα11.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 134361 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

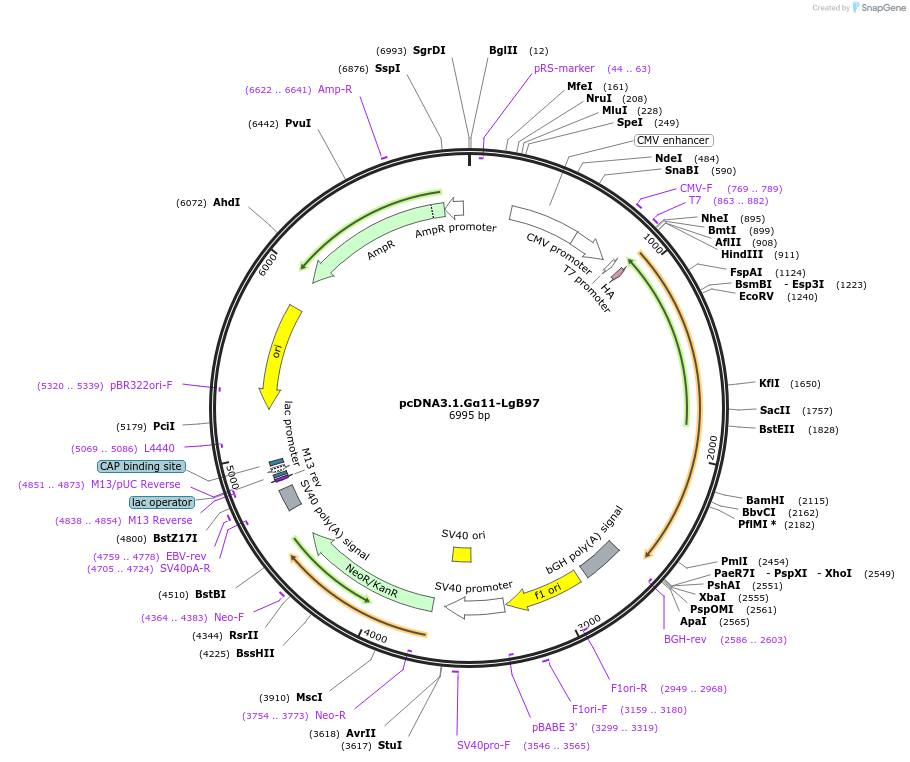

Backbone
-
Vector backbonepcDNA3.1
- Backbone size w/o insert (bp) 5400
- Total vector size (bp) 6992
-
Vector typeMammalian Expression, Bacterial Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameGα11-LgB97
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1629
-
GenBank IDNM_002067.5
-
Entrez GeneGNA11 (a.k.a. FBH, FBH2, FHH2, GNA-11, HG1K, HHC2, HYPOC2)
- Promoter T7
-
Tag
/ Fusion Protein
- HA (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site HindIII (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer TAATACGACTCACTATAGGG
- 3′ sequencing primer TTCCCAATCCTCCCCCTTG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3.1.Gα11-LgB97 was a gift from Julien Hanson (Addgene plasmid # 134361 ; http://n2t.net/addgene:134361 ; RRID:Addgene_134361) -
For your References section:
A dynamic and screening-compatible nanoluciferase-based complementation assay enables profiling of individual GPCR-G protein interactions. Laschet C, Dupuis N, Hanson J. J Biol Chem. 2019 Mar 15;294(11):4079-4090. doi: 10.1074/jbc.RA118.006231. Epub 2018 Dec 28. 10.1074/jbc.RA118.006231 PubMed 30593506
