pBOB-N-3HA-GK_v1
(Plasmid
#134275)
-
PurposeLentivector encoding 3XHA-tagged GK (isoform 1)
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 134275 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

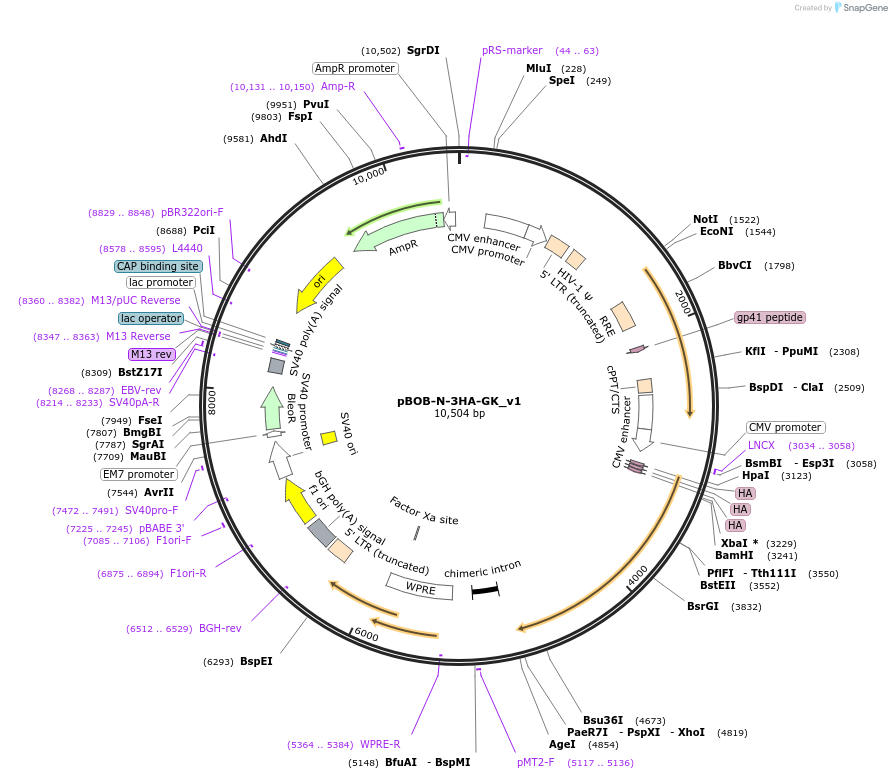

Backbone
-
Vector backbonepBOB
- Backbone size w/o insert (bp) 8800
- Total vector size (bp) 10500
-
Vector typeMammalian Expression, Lentiviral
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameGk
-
Alt nameglycerol kinase
-
Alt nameGyk
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)1575
-
Mutation524 amino acids, isoform 1
-
GenBank IDNM_008194
-
Entrez GeneGk (a.k.a. D930012N15Rik, Gyk)
- Promoter CMV
-
Tag
/ Fusion Protein
- 3X HA (N terminal on insert)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer agctcgtttagtgaaccgtcagatcg
- 3′ sequencing primer ggaaactgacaatcttagcgcag (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBOB-N-3HA-GK_v1 was a gift from Bruce Beutler (Addgene plasmid # 134275 ; http://n2t.net/addgene:134275 ; RRID:Addgene_134275) -
For your References section:
Skin-specific regulation of SREBP processing and lipid biosynthesis by glycerol kinase 5. Zhang D, Tomisato W, Su L, Sun L, Choi JH, Zhang Z, Wang KW, Zhan X, Choi M, Li X, Tang M, Castro-Perez JM, Hildebrand S, Murray AR, Moresco EMY, Beutler B. Proc Natl Acad Sci U S A. 2017 Jun 27;114(26):E5197-E5206. doi: 10.1073/pnas.1705312114. Epub 2017 Jun 12. 10.1073/pnas.1705312114 PubMed 28607088
