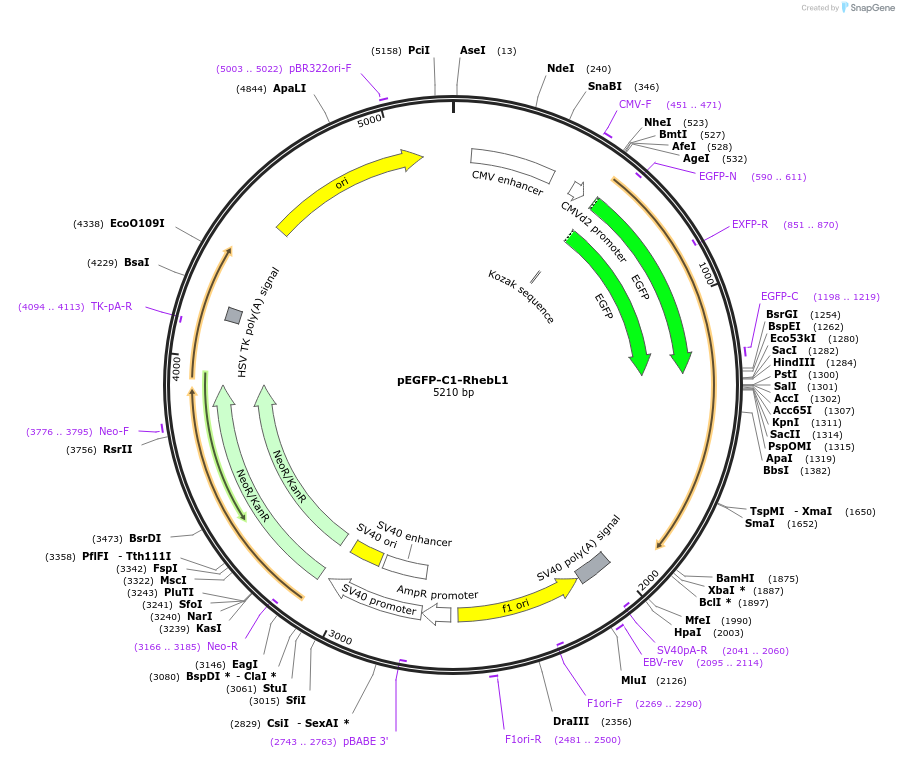

pEGFP-C1-RhebL1
(Plasmid #133766)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 133766 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pEGFP-C1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4500
  • Total vector size (bp) 5284
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    RhebL1
  • Alt name
    Ras Homolog Enriched In Brain-Like Protein 1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    552
  • GenBank ID
    NM_144593.3
  • Entrez Gene
    RHEBL1 (a.k.a. RHEBL1c)
  • Promoter CMV
  • Tag / Fusion Protein
    • EGFP (N terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CATGGTCCTGCTGGAGTTCGTG
  • 3′ sequencing primer GAAATTTGTGATGCTATTGC
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://www.biorxiv.org/content/10.1101/513473v3 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEGFP-C1-RhebL1 was a gift from Shawn Ferguson (Addgene plasmid # 133766 ; http://n2t.net/addgene:133766 ; RRID:Addgene_133766)
  • For your References section:

    Weak membrane interactions allow Rheb to activate mTORC1 signaling without major lysosome enrichment. Angarola B, Ferguson SM. Mol Biol Cell. 2019 Oct 15;30(22):2750-2760. doi: 10.1091/mbc.E19-03-0146. Epub 2019 Sep 18. 10.1091/mbc.E19-03-0146 PubMed 31532697
