pET28a-MinE-His
(Plasmid
#133623)
-
PurposeExpression vector for the Escherichia coli MinE with an C-terminal fusion of a His-tag for purification.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 133623 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepET28a
- Backbone size w/o insert (bp) 5206
- Total vector size (bp) 5509
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameMinE-His
-
SpeciesE. coli
-
Insert Size (bp)303
-
Entrez GeneminE (a.k.a. b1174, ECK1162, minB)
-
Tag
/ Fusion Protein
- His (C terminal on insert)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pET28a-MinE-His was a gift from Petra Schwille (Addgene plasmid # 133623 ; http://n2t.net/addgene:133623 ; RRID:Addgene_133623) -
For your References section:
Stationary patterns in a two-protein reaction-diffusion system. Glock P, Ramm B, Heermann T, Kretschmer S, Schweizer J, Mucksch J, Alagoz G, Schwille P. ACS Synth Biol. 2018 Dec 20. doi: 10.1021/acssynbio.8b00415. 10.1021/acssynbio.8b00415 PubMed 30571913

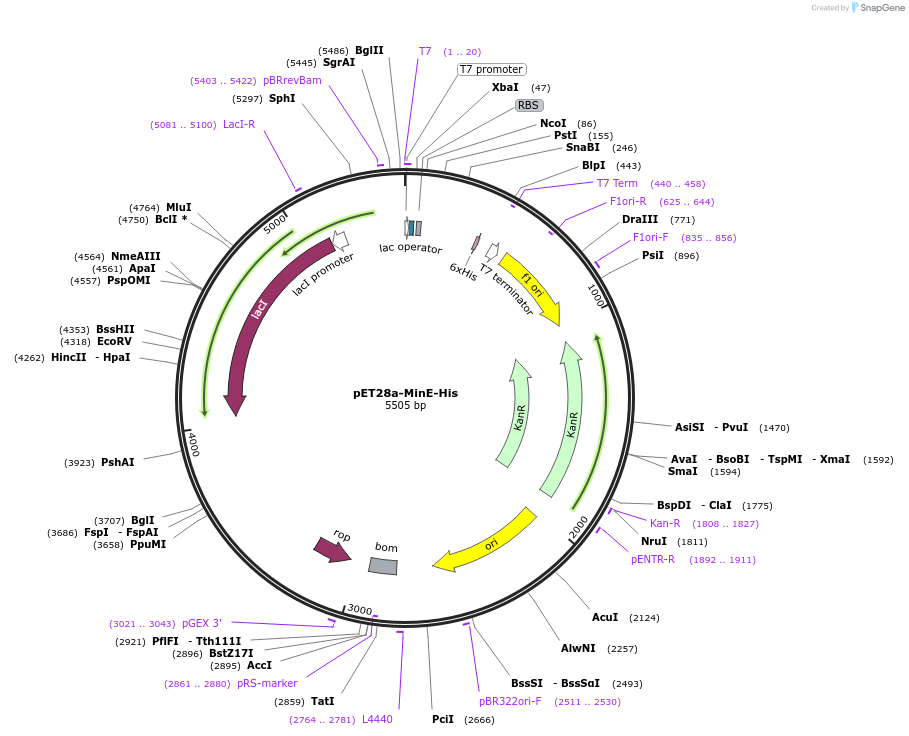

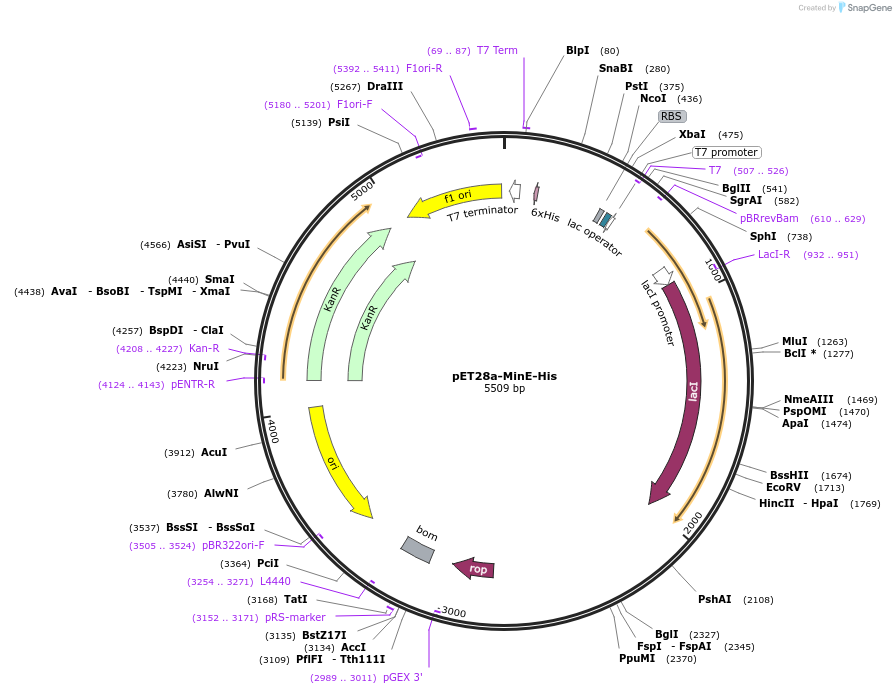

Map uploaded by the depositor.
