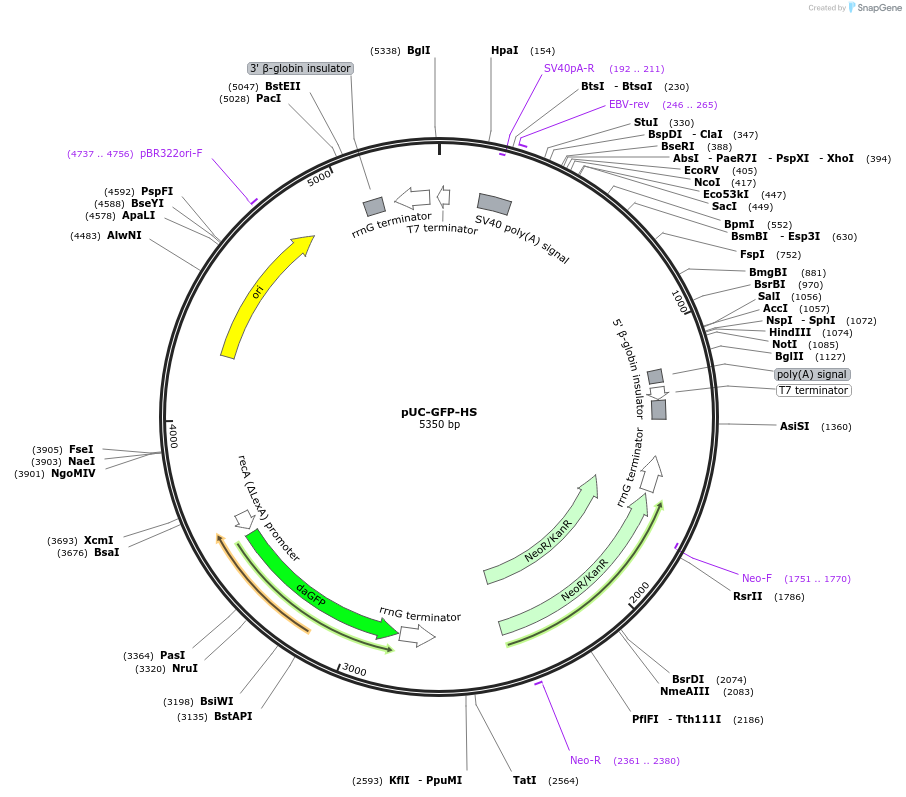

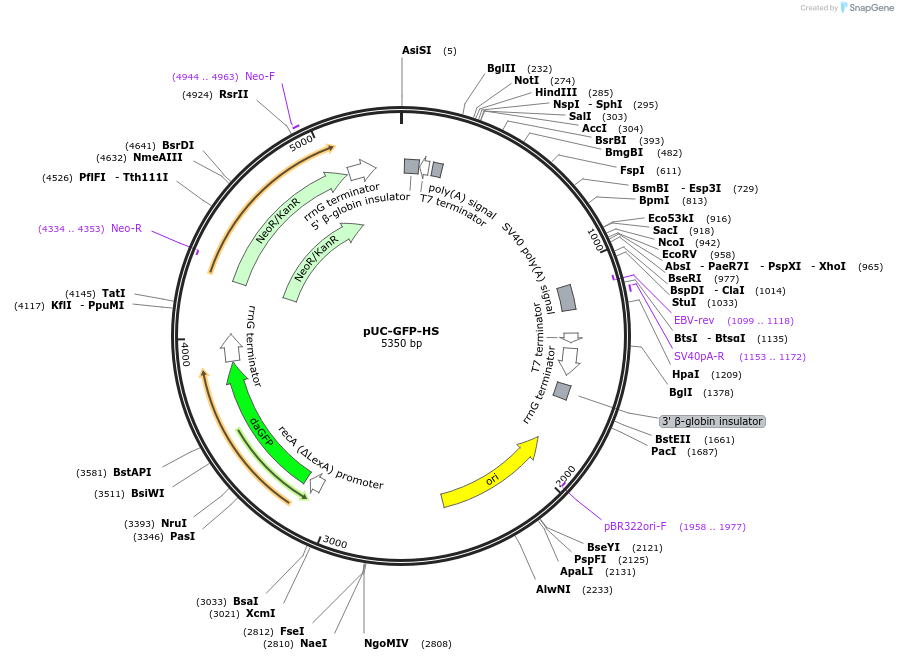

pUC-GFP-HS
(Plasmid #133305)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 133305 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSF_UC_OXB20-daGFP
  • Backbone manufacturer
    Oxford Genetics
  • Backbone size w/o insert (bp) 4700
  • Total vector size (bp) 5350
  • Modifications to backbone
    original SC101 ori replaced with pUC ori
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    hok/sok toxin-antitoxin cassette
  • Species
    E. coli

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (unknown if destroyed)
  • 3′ cloning site SacI (unknown if destroyed)
  • 5′ sequencing primer TCGTTGCGTTACACACAC
  • 3′ sequencing primer AGTCAGTCAGTGCAGGAG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pUC-GFP-HS was a gift from Chris Barnes (Addgene plasmid # 133305 ; http://n2t.net/addgene:133305 ; RRID:Addgene_133305)

  • For your References section:

    Two New Plasmid Post-segregational Killing Mechanisms for the Implementation of Synthetic Gene Networks in Escherichia coli. Fedorec AJH, Ozdemir T, Doshi A, Ho YK, Rosa L, Rutter J, Velazquez O, Pinheiro VB, Danino T, Barnes CP. iScience. 2019 Apr 26;14:323-334. doi: 10.1016/j.isci.2019.03.019. Epub 2019 Mar 22. 10.1016/j.isci.2019.03.019 PubMed 30954530
