TLCV2-DelGFP
(Plasmid
#133302)
-
Purpose(Empty Backbone) EGFP reporter was removed in the TLCV2 vector so it could be used for inducible gene CRISPR knockout in cell lines with an eGFP reporter.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 133302 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneTLCV2
-
Backbone manufacturerAdam Karpf
- Backbone size (bp) 16733
-
Modifications to backboneEGFP reporter sequence was removed in the TLCV2 vector.
-
Vector typeMammalian Expression, Lentiviral, CRISPR
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Cloning Information
- 5′ sequencing primer hU6-F (5'-GAGGGCCTATTTCCCATGATT-3') (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
TLCV2-DelGFP was a gift from Jingshi Shen (Addgene plasmid # 133302 ; http://n2t.net/addgene:133302 ; RRID:Addgene_133302) -
For your References section:
Inducible Exoc7/Exo70 knockout reveals a critical role of the exocyst in insulin-regulated GLUT4 exocytosis. Wang S, Crisman L, Miller J, Datta I, Gulbranson DR, Tian Y, Yin Q, Yu H, Shen J. J Biol Chem. 2019 Dec 27;294(52):19988-19996. doi: 10.1074/jbc.RA119.010821. Epub 2019 Nov 18. 10.1074/jbc.RA119.010821 PubMed 31740584

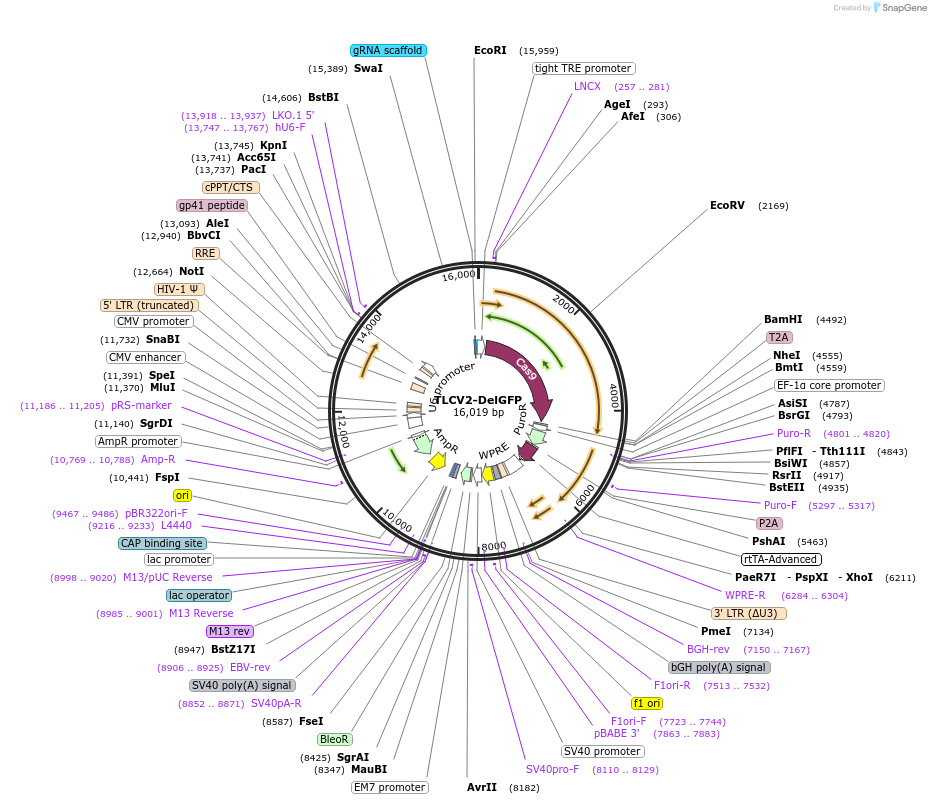

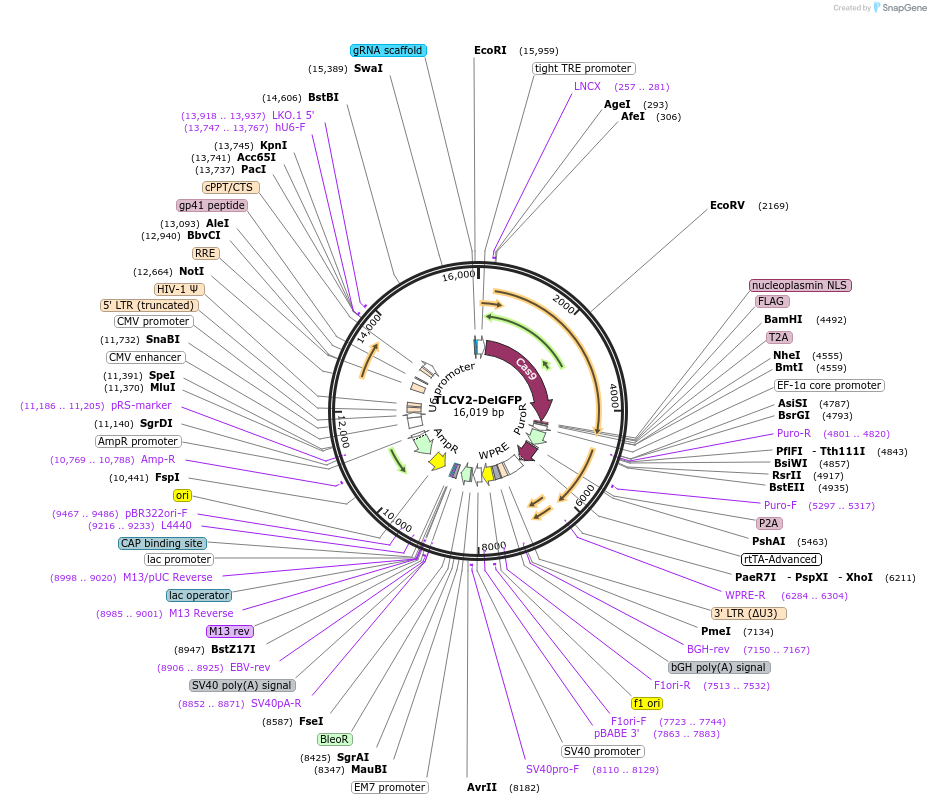

Map uploaded by the depositor.
