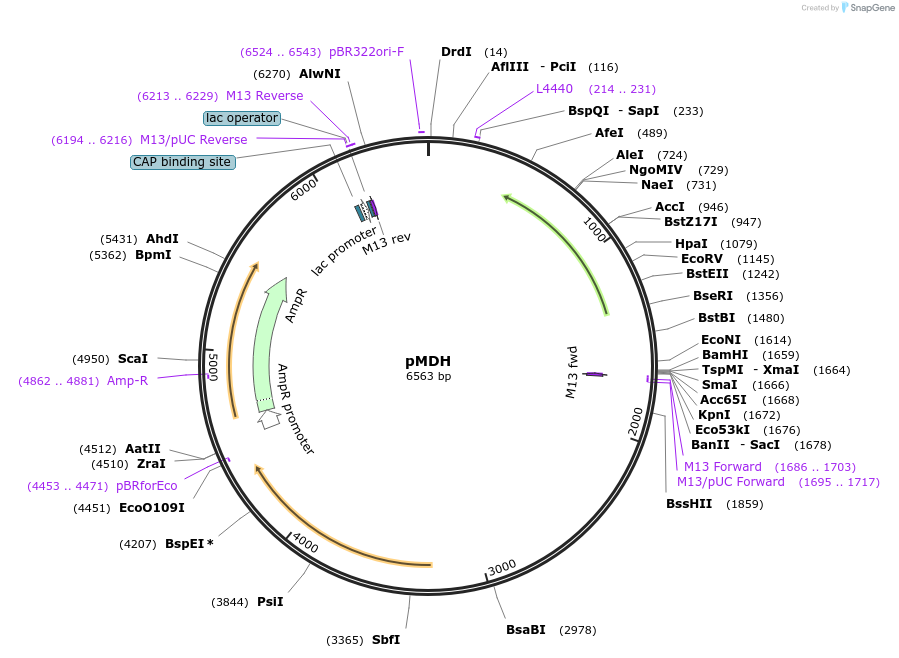

pMDH
(Plasmid #133129)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 133129 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLGZ920
  • Backbone manufacturer
    Pil Kim
  • Backbone size w/o insert (bp) 5403
  • Total vector size (bp) 6563
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    malate dehydrogenase gene
  • Alt name
    mdh
  • Species
    Actinobacillus succinogenes
  • Insert Size (bp)
    1350
  • Promoter malate dehydrogenase promoter

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer CGAACCGAAGCGTTCCTGCGCGAGTAACGC
  • 3′ sequencing primer GCTTCCCATTAATCAAACGGCGG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMDH was a gift from Gregg Beckham (Addgene plasmid # 133129 ; http://n2t.net/addgene:133129 ; RRID:Addgene_133129)

  • For your References section:

    Metabolic Engineering of Actinobacillus succinogenes Provides Insights into Succinic Acid Biosynthesis. Guarnieri MT, Chou YC, Salvachua D, Mohagheghi A, St John PC, Peterson DJ, Bomble YJ, Beckham GT. Appl Environ Microbiol. 2017 Aug 17;83(17). pii: AEM.00996-17. doi: 10.1128/AEM.00996-17. Print 2017 Sep 1. 10.1128/AEM.00996-17 PubMed 28625987
