pCMK2-Venus
(Plasmid
#133119)
-
PurposePlasmid contains a reporter gene for Crz1. The 1000bp promoter of the gene pCMK2 driving a Venus.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 133119 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

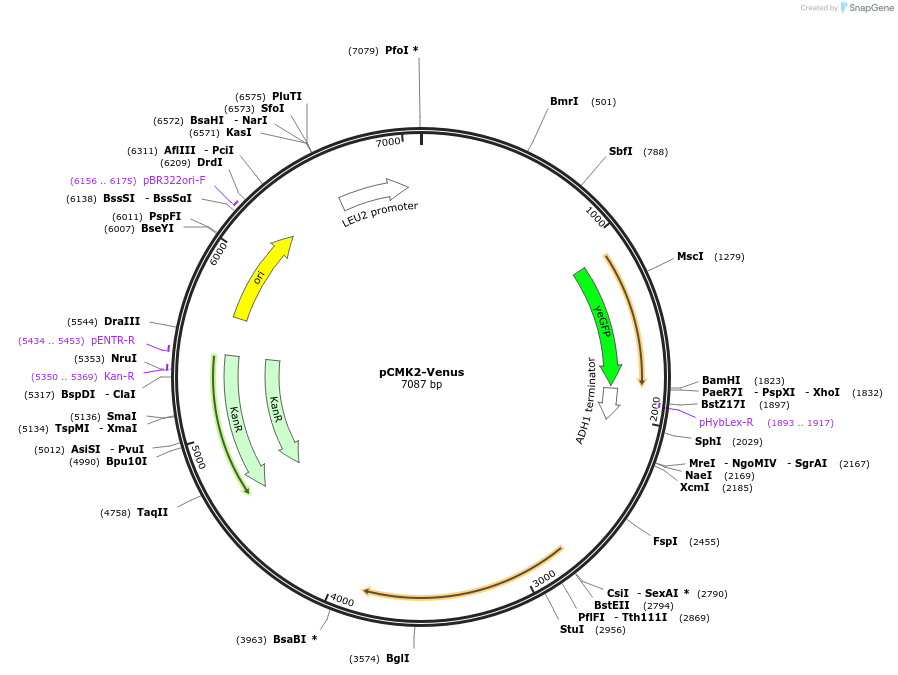

Backbone
-
Vector backbonepYTK143
- Total vector size (bp) 7087
-
Vector typeBacterial Expression, Yeast Expression
-
Selectable markersLEU2
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namepCMK2-YFP
-
SpeciesS. cerevisiae (budding yeast)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCMK2-Venus was a gift from Hana El-Samad (Addgene plasmid # 133119 ; http://n2t.net/addgene:133119 ; RRID:Addgene_133119) -
For your References section:
Optogenetic Control Reveals Differential Promoter Interpretation of Transcription Factor Nuclear Translocation Dynamics. Chen SY, Osimiri LC, Chevalier M, Bugaj LJ, Nguyen TH, Greenstein RA, Ng AH, Stewart-Ornstein J, Neves LT, El-Samad H. Cell Syst. 2020 Sep 4. pii: S2405-4712(20)30293-3. doi: 10.1016/j.cels.2020.08.009. 10.1016/j.cels.2020.08.009 PubMed 32898473
