p5E-6xgata2aECEbasp
(Plasmid
#132968)
-
Purposegata2a endothelial enhancer (x6) and basal promoter in p5E Gateway vector
-
Depositing Lab
-

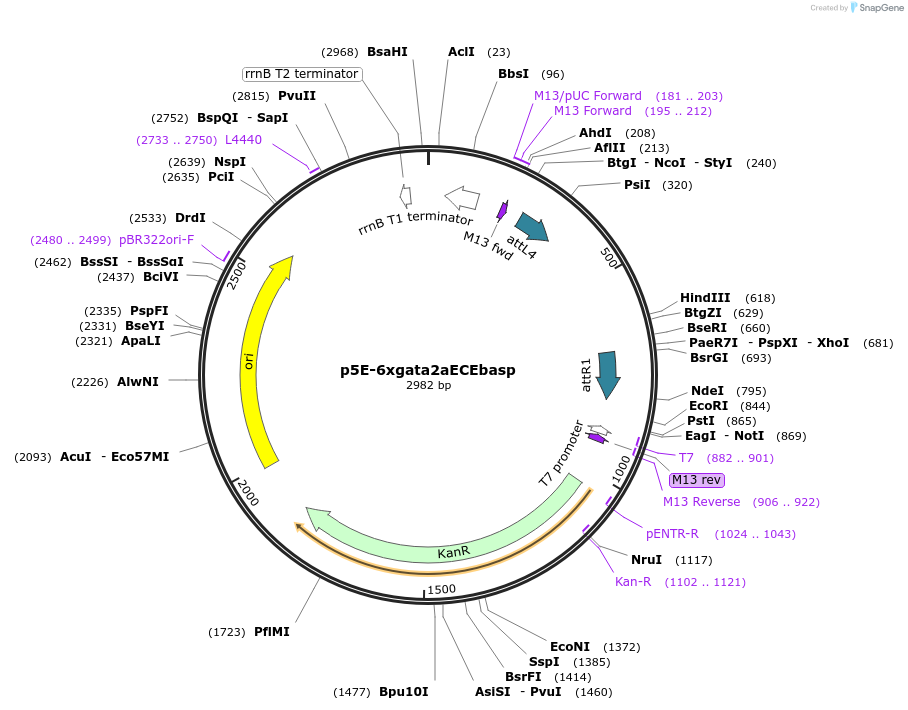

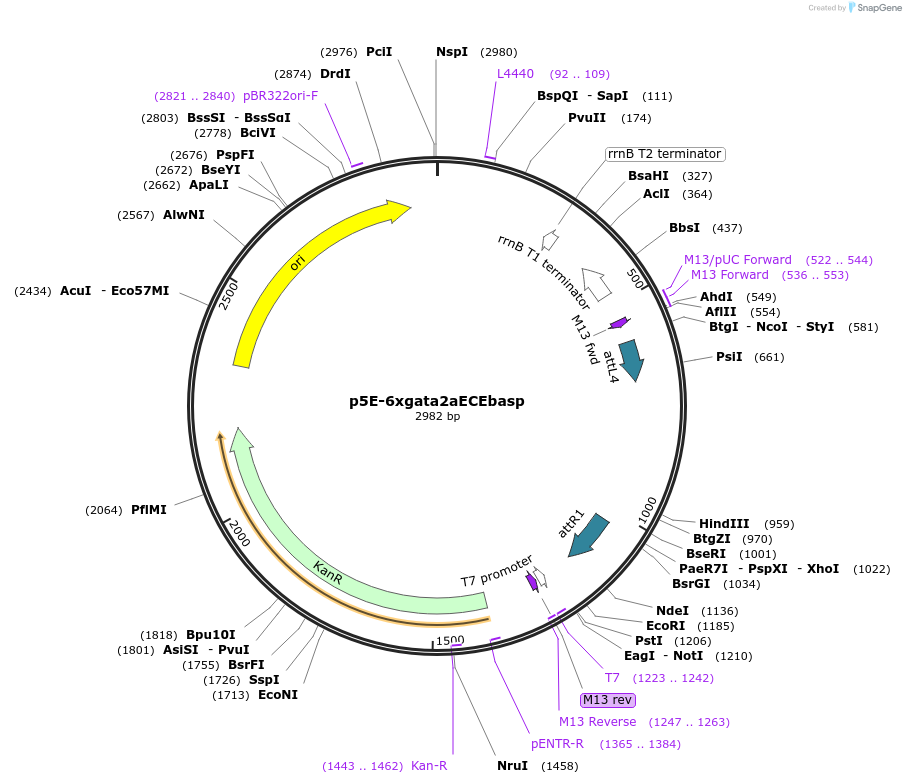

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 132968 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepDONR221
- Backbone size w/o insert (bp) 2643
- Total vector size (bp) 2982
-
Vector typeGateway vector
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namegata2a endothelial enhancer (x6) with a b-actin basal promoter
-
SpeciesD. rerio (zebrafish)
-
Insert Size (bp)339
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer M13F
- 3′ sequencing primer M13R-pUC (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
p5E-6xgata2aECEbasp was a gift from Nathan Lawson (Addgene plasmid # 132968 ; http://n2t.net/addgene:132968 ; RRID:Addgene_132968) -
For your References section:
Valves Are a Conserved Feature of the Zebrafish Lymphatic System. Shin M, Nozaki T, Idrizi F, Isogai S, Ogasawara K, Ishida K, Yuge S, Roscoe B, Wolfe SA, Fukuhara S, Mochizuki N, Deguchi T, Lawson ND. Dev Cell. 2019 Nov 4;51(3):374-386.e5. doi: 10.1016/j.devcel.2019.08.019. Epub 2019 Sep 26. 10.1016/j.devcel.2019.08.019 PubMed 31564611
