pRD134
(Plasmid
#132378)
-
Purposecontains the sequence of mScarlet for C-term fusions in the pGGD000 backbone (GreenGate)
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 132378 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

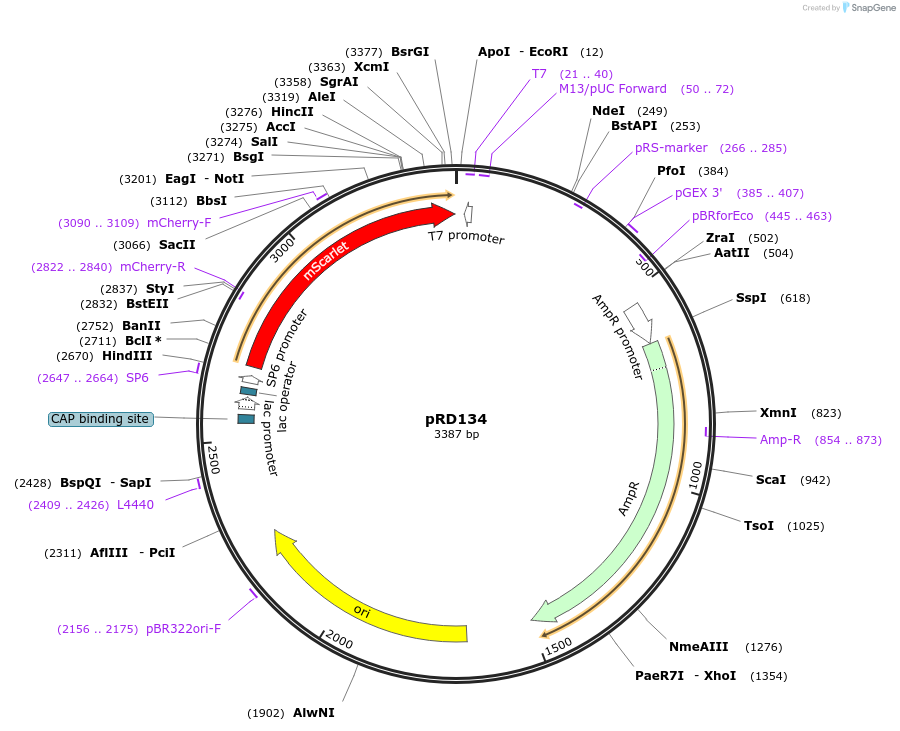

Backbone
-
Vector backbonepGGD000
- Backbone size w/o insert (bp) 2682
- Total vector size (bp) 3387
-
Vector typeGreenGate Entry plasmid
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemScarlet
-
Insert Size (bp)705
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byOriginally cloned by Rebecca Burkart (Heinrich-Heine Universität)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/734616v2 for bioRxiv preprint.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRD134 was a gift from Rüdiger Simon (Addgene plasmid # 132378 ; http://n2t.net/addgene:132378 ; RRID:Addgene_132378) -
For your References section:
Over the rainbow: A practical guide for fluorescent protein selection in plant FRET experiments. Denay G, Schultz P, Hansch S, Weidtkamp-Peters S, Simon R. Plant Direct. 2019 Dec 6;3(12):e00189. doi: 10.1002/pld3.189. eCollection 2019 Dec. 10.1002/pld3.189 PubMed 31844834
