pAAV-hSyn-ASAP3Kv-WPRE
(Plasmid #132332)

• Purpose: expresses ASAP3Kv(soma-located version of ASAP3, ASAP-family genetically encoded voltage indicator) in mammalian cells, gene delivered by pAAV-hSyn vector
• Depositing Lab: Michael Lin
• Publication: Villette et al Cell. 2019 Dec 12;179(7):1590-1608.e23. doi: 10.1016/j.cell.2019.11.004.

Want a viral vector made from this plasmid?

Make a packaging request and we'll get back to you.

This service is available to academics and nonprofits only.

Please log in to submit a packaging request.

• Serotype: Select serotype for details See details about
• Pricing: Select serotype and quantity $ USD for preparation of µL virus + $30 USD for plasmid.
• How this works:
  • Place a request for a quantity of 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
  • Addgene will quickly confirm that we can produce a high-quality prep for you.
  • Track your request and place an order from within your account. Payment information must be added before we can begin processing your order.
  • Receive your prep in 6–9 weeks after the MTA is approved by your organization.
  • Learn more about our Packaged on Request Service.

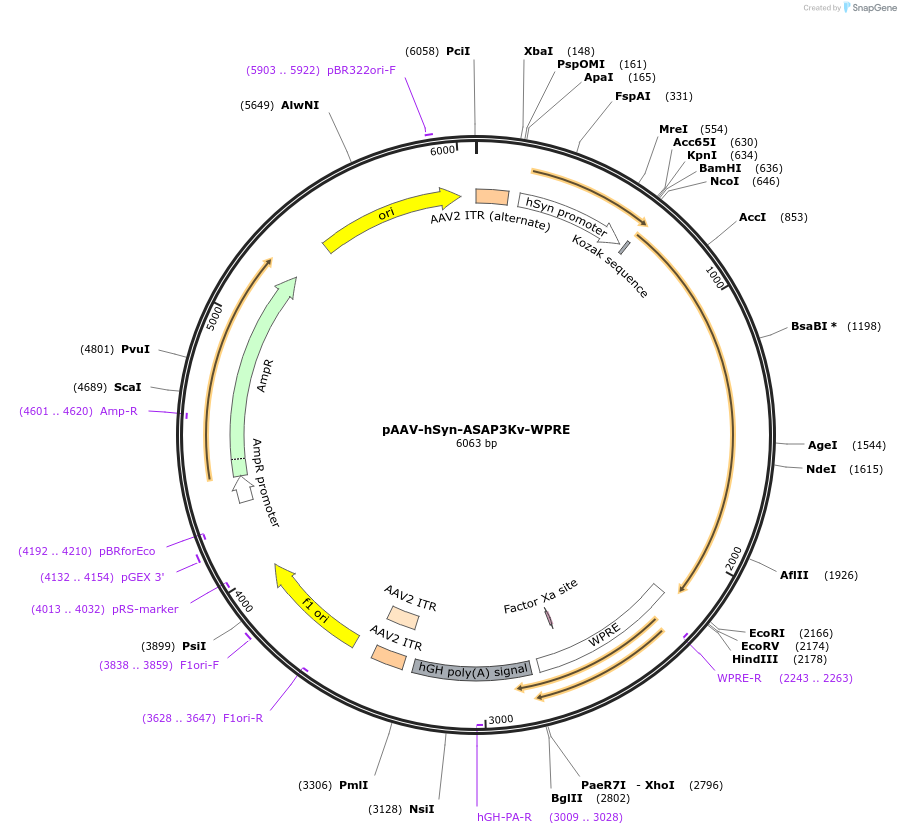

Backbone

• Vector backbone: pAAV-hSyn
• Backbone manufacturer: addgene
• Backbone size w/o insert (bp): 4559
• Total vector size (bp): 6074
• Vector type: Mammalian Expression, AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: ASAP3Kv
• Alt name: soma-located version of Accelerated Sensor of Action Potentials 3
• Species: Synthetic
• Promoter: hSynapsin

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BamHI (not destroyed)
• 3′ cloning site: HindIII (not destroyed)
• 5′ sequencing primer: gcagcggaggagtc
• 3′ sequencing primer: cattaaagcagcgtatcc

Resource Information

• Supplemental Documents:
  • paav-hsyn-asap3kv-wpre.gb
• Articles Citing this Plasmid:
  • 2 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
