pBW005
(Plasmid #131806)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 131806 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

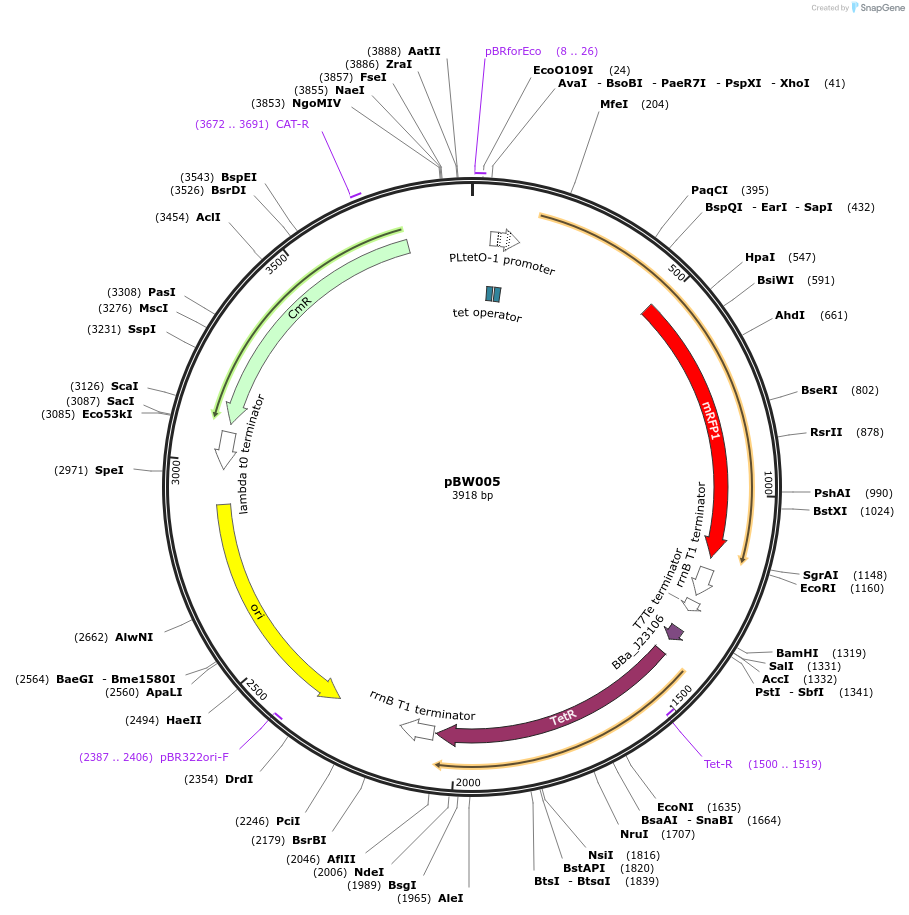

Backbone

  • Vector backbone
    ColE1
  • Total vector size (bp) 3917
  • Vector type
    Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Chloramphenicol, 25 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Mastigocladus laminosus ferredoxin
  • Species
    Synthetic
  • Insert Size (bp)
    300
  • Tag / Fusion Protein
    • mRFP1 (C terminal on insert)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

For detailed annotations see the GenBank file under Resource Information/Supplemental Documents. Please visit https://www.biorxiv.org/content/10.1101/645978v1 for BioRxiv preprint

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pBW005 was a gift from Jonathan Silberg (Addgene plasmid # 131806 ; http://n2t.net/addgene:131806 ; RRID:Addgene_131806)

  • For your References section:

    Combinatorial design of chemical-dependent protein switches for controlling intracellular electron transfer. Wu B, Atkinson JT, Kahanda D, Bennett GN, Silberg JJ. BioRxiv May 23, 2019 10.1101/645978v1
