pBW002
(Plasmid
#131591)
-
PurposeVector with aTc inducible M. laminosus Fd1 without BbsI restriction sites in the vector backbone
-
Depositing Lab
-
Publication
-

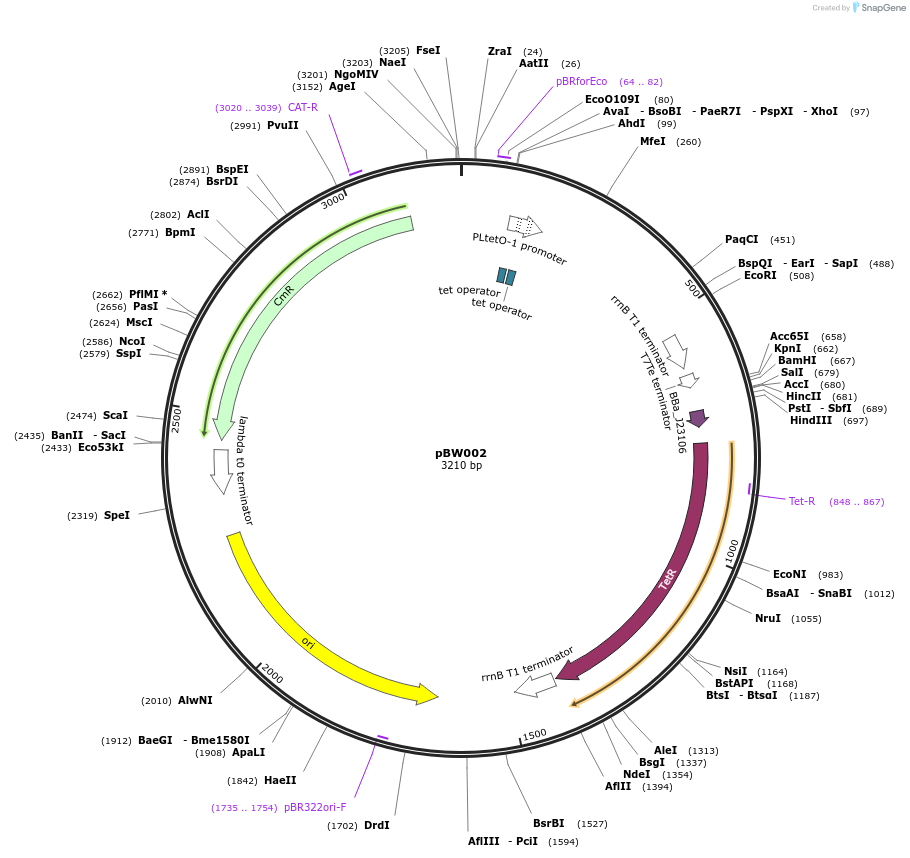

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 131591 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneColE1
- Backbone size w/o insert (bp) 2909
- Total vector size (bp) 3209
-
Vector typeSynthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameMastigocladus laminosus ferredoxin
-
SpeciesSynthetic
-
Insert Size (bp)300
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/645978v1 for BioRxiv preprint
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBW002 was a gift from Jonathan Silberg (Addgene plasmid # 131591 ; http://n2t.net/addgene:131591 ; RRID:Addgene_131591) -
For your References section:
Combinatorial design of chemical-dependent protein switches for controlling intracellular electron transfer. Wu B, Atkinson JT, Kahanda D, Bennett GN, Silberg JJ. BioRxiv May 23, 2019 10.1101/645978v1
