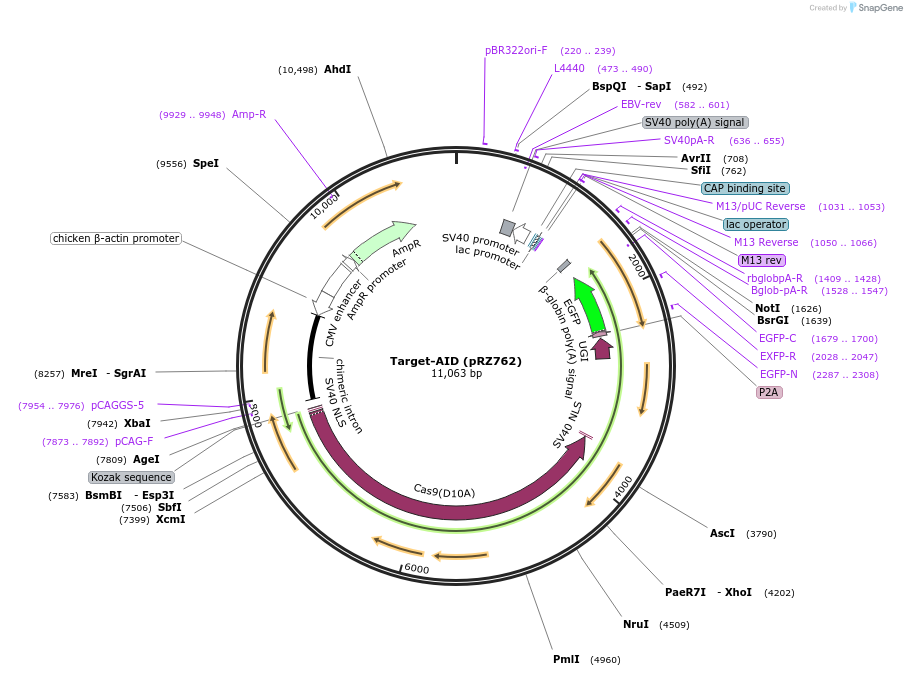

Target-AID (pRZ762)
(Plasmid #131300)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 131300 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    CAG
  • Backbone manufacturer
    pSQT817 (Addgene #53373)
  • Backbone size w/o insert (bp) 4843
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    NLS-hSpCas9n(D10A)-NLS-SH3-3xFLAG-pmCDA1(R187W with reference to NCBI ABO15149.1)-NLS-UGI-P2A-EGFP
  • Species
    Streptococcus pyogenes, Bacillus subtilis bacteriophage PBS1, SV40, Petromyzon marinus
  • Promoter CAG

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CTCTGCTAACCATGTTCATGCC
  • 3′ sequencing primer CAGAGGGAAAAAGATCTCAGTGG
    • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    based on Addgene #79620
  • Articles Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Target-AID (pRZ762) was a gift from Keith Joung (Addgene plasmid # 131300 ; http://n2t.net/addgene:131300 ; RRID:Addgene_131300)

  • For your References section:

    CRISPR DNA base editors with reduced RNA off-target and self-editing activities. Grunewald J, Zhou R, Iyer S, Lareau CA, Garcia SP, Aryee MJ, Joung JK. Nat Biotechnol. 2019 Sep 2. pii: 10.1038/s41587-019-0236-6. doi: 10.1038/s41587-019-0236-6. 10.1038/s41587-019-0236-6 PubMed 31477922
