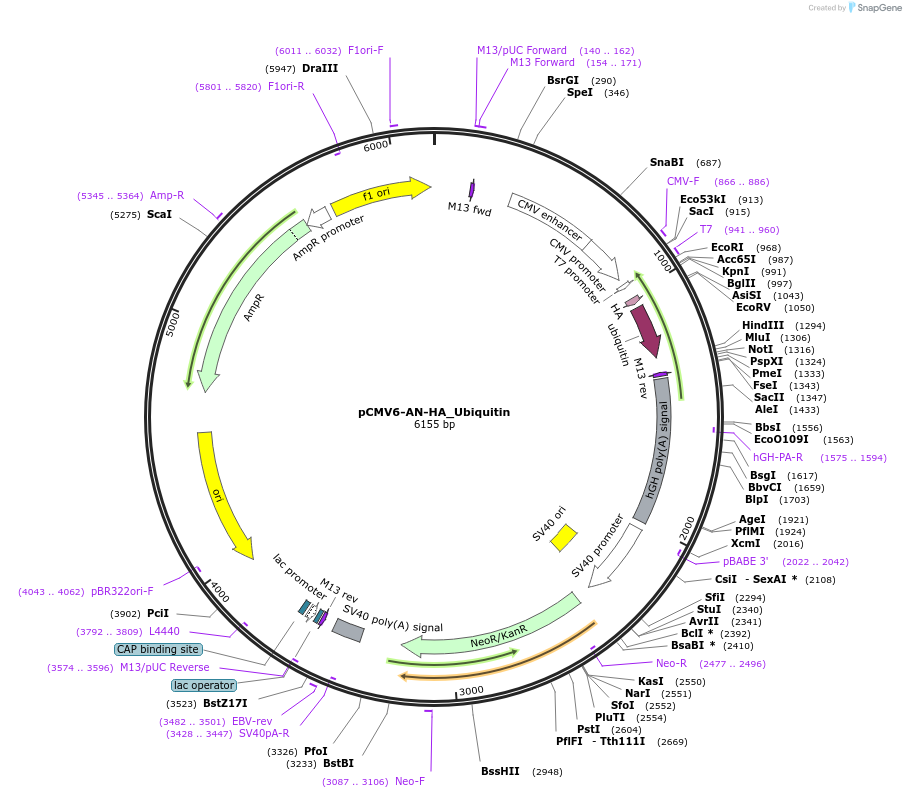

pCMV6-AN-HA_Ubiquitin
(Plasmid #131258)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 131258 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pCMV6-AN-HA
  • Backbone manufacturer
    Origene
  • Backbone size w/o insert (bp) 5926
  • Total vector size (bp) 6163
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Ubiquitin C
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    273
  • GenBank ID
    NM_021009.7
  • Entrez Gene
    UBC (a.k.a. HMG20)
  • Promoter CMV enhancer + CMV promoter
  • Tag / Fusion Protein
    • HA (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AsiSI (not destroyed)
  • 3′ cloning site MluI (not destroyed)
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • 3′ sequencing primer CAGGAAACAGCTATGAC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV6-AN-HA_Ubiquitin was a gift from Roger Woodgate (Addgene plasmid # 131258 ; http://n2t.net/addgene:131258 ; RRID:Addgene_131258)

  • For your References section:

    DNA Polymerase iota Interacts with Both the TRAF-like and UBL1-2 Domains of USP7. Ashton NW, Valles GJ, Jaiswal N, Bezsonova I, Woodgate R. J Mol Biol. 2021 Jan 22;433(2):166733. doi: 10.1016/j.jmb.2020.166733. Epub 2020 Dec 3. 10.1016/j.jmb.2020.166733 PubMed 33279577
