pcF-2/1/3
(Plasmid
#131028)
-
PurposeThree-spacer array 3 for FnCas12a.
-
Depositing Lab
-

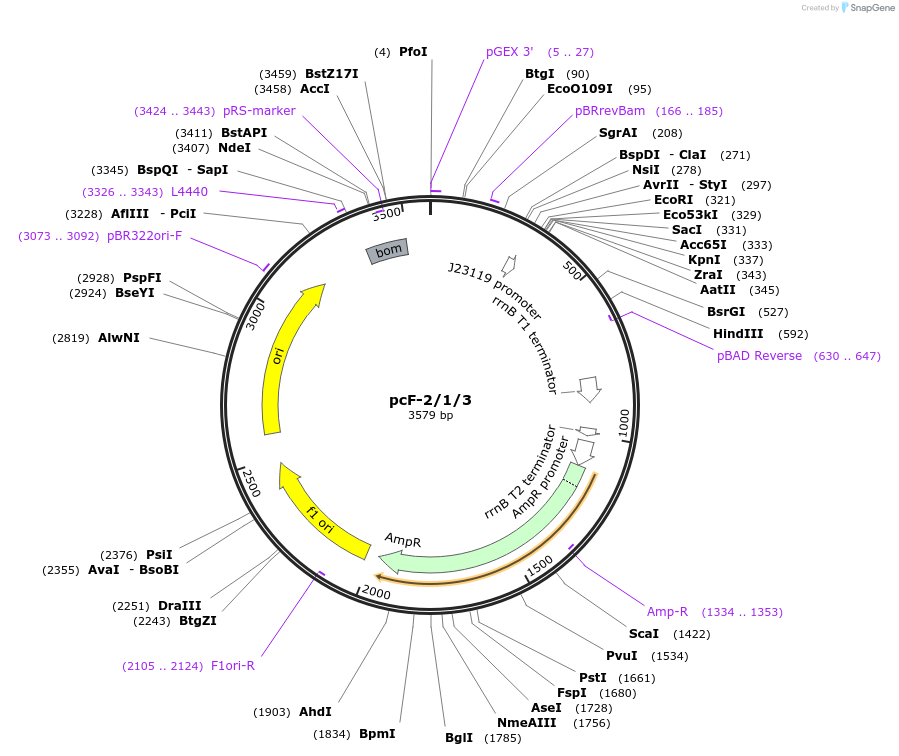

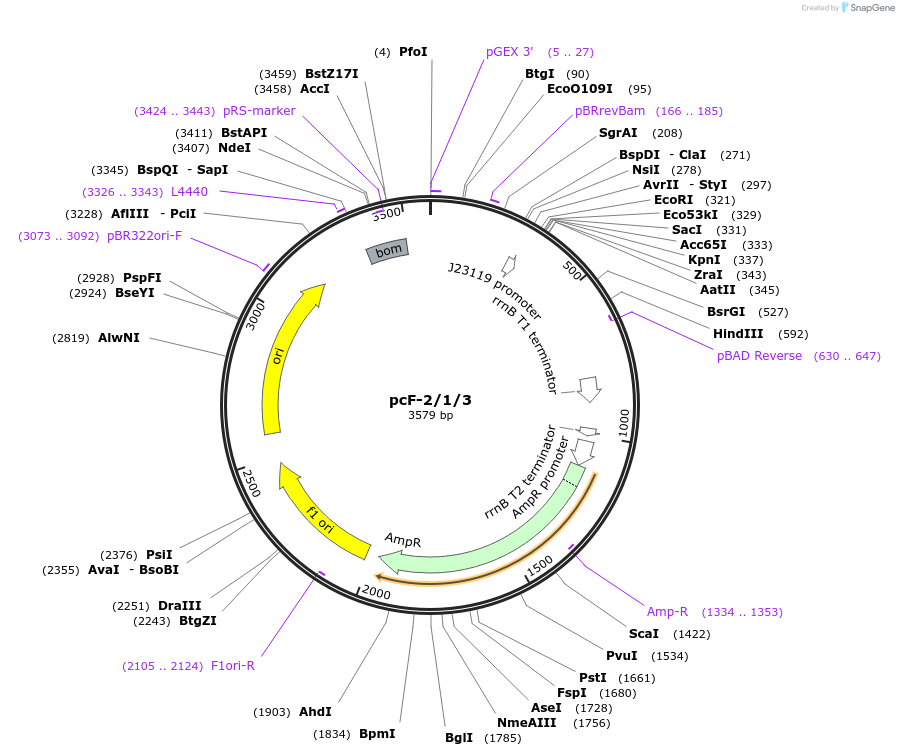

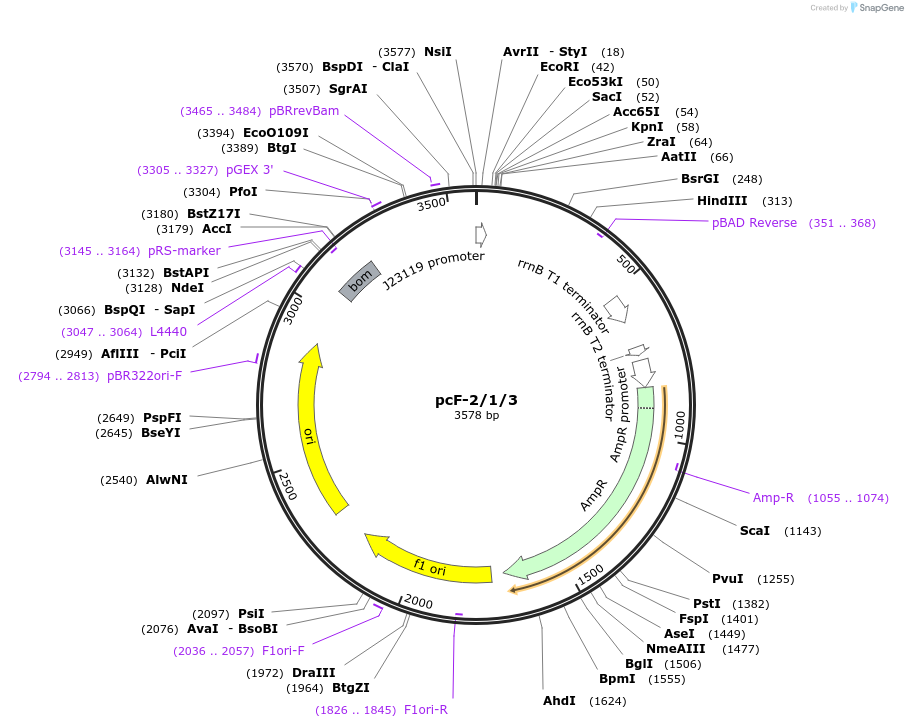

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 131028 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepBAD18
- Total vector size (bp) 3579
-
Vector typeBacterial Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert name3-spacer array for FnCas12a
-
Insert Size (bp)234
- Promoter PJ23119
Cloning Information
- Cloning method Unknown
- 5′ sequencing primer AGCGCTCATGAGCCCGA
- 3′ sequencing primer TGCCGCCAGGCAAATTCTG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcF-2/1/3 was a gift from Chase Beisel (Addgene plasmid # 131028 ; http://n2t.net/addgene:131028 ; RRID:Addgene_131028) -
For your References section:
Modular one-pot assembly of CRISPR arrays enables library generation and reveals factors influencing crRNA biogenesis. Liao C, Ttofali F, Slotkowski RA, Denny SR, Cecil TD, Leenay RT, Keung AJ, Beisel CL. Nat Commun. 2019 Jul 3;10(1):2948. doi: 10.1038/s41467-019-10747-3. 10.1038/s41467-019-10747-3 PubMed 31270316
