pLenti-CMV-cGAS R71/75E-HA
(Plasmid
#130919)
-
PurposeExpresses human cGAS-HA with R71/75E point mutation; Puromycin selection marker
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 130919 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

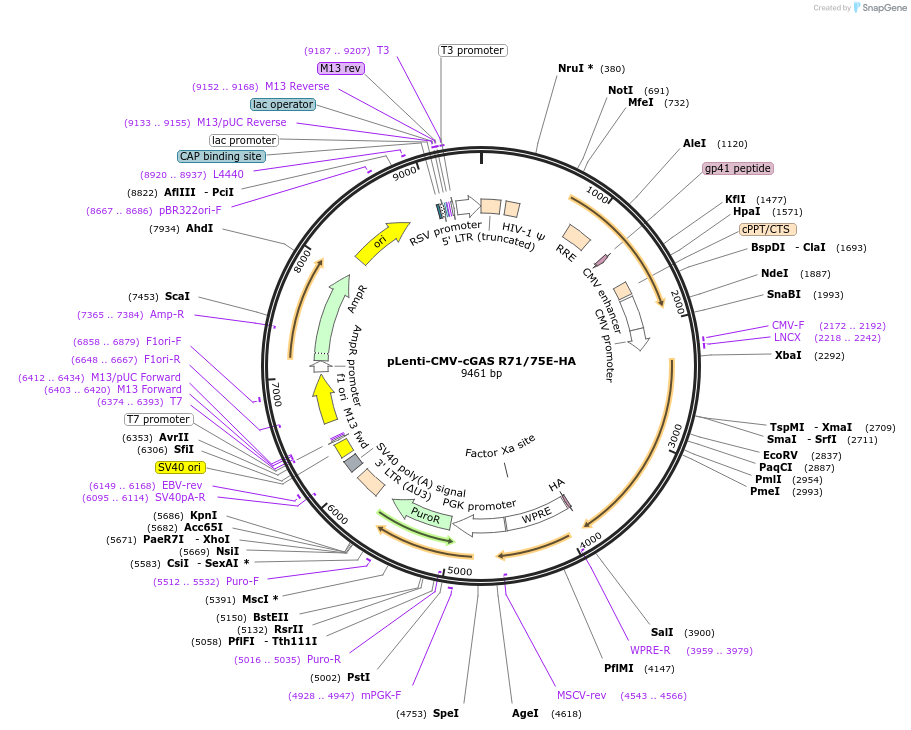

Backbone
-
Vector backbonepLenti CMV GFP Puro
-
Backbone manufacturerAddgene (#17448)
- Backbone size w/o insert (bp) 8000
- Total vector size (bp) 9461
-
Vector typeMammalian Expression
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namehuman cGAS R71/75E
-
SpeciesH. sapiens (human)
-
Insert Size (bp)1600
-
Mutationaa 71 and 75 mutated to glutamate
- Promoter CMV
-
Tag
/ Fusion Protein
- HA (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XbaI (not destroyed)
- 3′ cloning site SalI (not destroyed)
- 5′ sequencing primer CMV Forward (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLenti-CMV-cGAS R71/75E-HA was a gift from Jonathan Kagan (Addgene plasmid # 130919 ; http://n2t.net/addgene:130919 ; RRID:Addgene_130919) -
For your References section:
Phosphoinositide Interactions Position cGAS at the Plasma Membrane to Ensure Efficient Distinction between Self- and Viral DNA. Barnett KC, Coronas-Serna JM, Zhou W, Ernandes MJ, Cao A, Kranzusch PJ, Kagan JC. Cell. 2019 Mar 7;176(6):1432-1446.e11. doi: 10.1016/j.cell.2019.01.049. Epub 2019 Feb 28. 10.1016/j.cell.2019.01.049 PubMed 30827685
