pAG385 bJun-NFAST-NLS-DEVDG-mCherry-NES
(Plasmid
#130816)
-
PurposeExpresses bJun-NFAST-NLS-DEVDG-mCherry-NES in mammalian cells
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 130816 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepIRES
- Backbone size w/o insert (bp) 3960
- Total vector size (bp) 5375
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namebJun-NFAST-NLS-DEVDG-mCherry-NES
-
Alt nameelement of the splitFAST-based Caspase-3 sensor
-
SpeciesSynthetic
-
Insert Size (bp)1415
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAG385 bJun-NFAST-NLS-DEVDG-mCherry-NES was a gift from Arnaud Gautier (Addgene plasmid # 130816 ; http://n2t.net/addgene:130816 ; RRID:Addgene_130816) -
For your References section:
A split fluorescent reporter with rapid and reversible complementation. Tebo AG, Gautier A. Nat Commun. 2019 Jun 27;10(1):2822. doi: 10.1038/s41467-019-10855-0. 10.1038/s41467-019-10855-0 PubMed 31249300

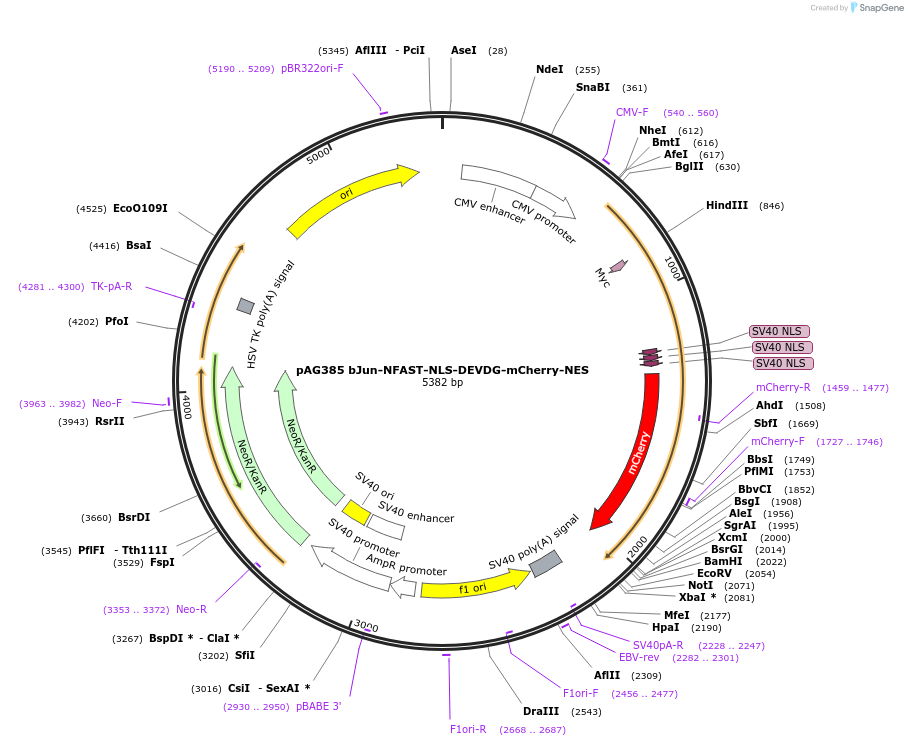

Map uploaded by the depositor.

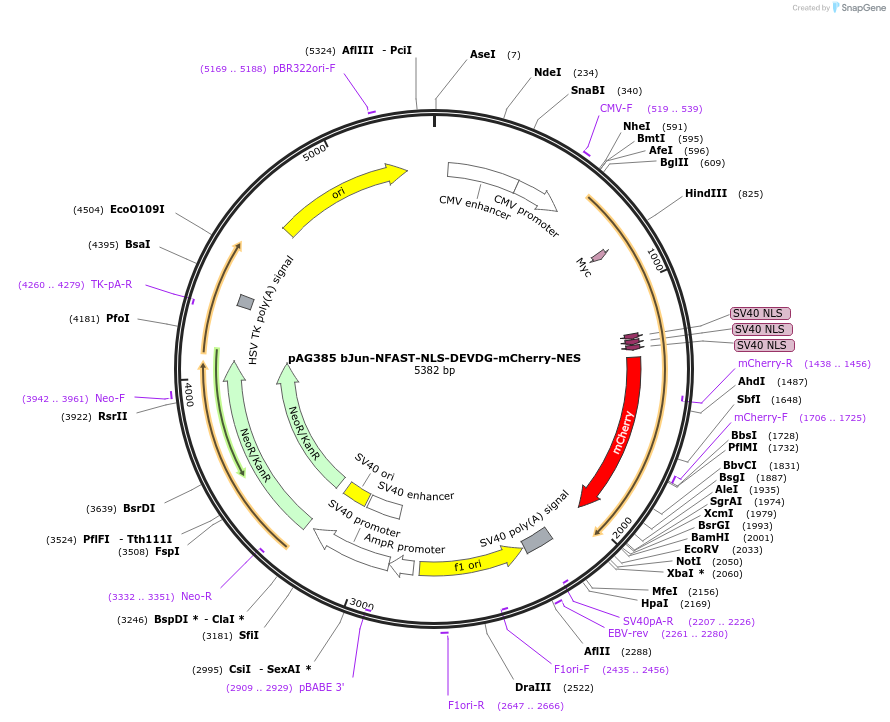

Map uploaded by the depositor.
