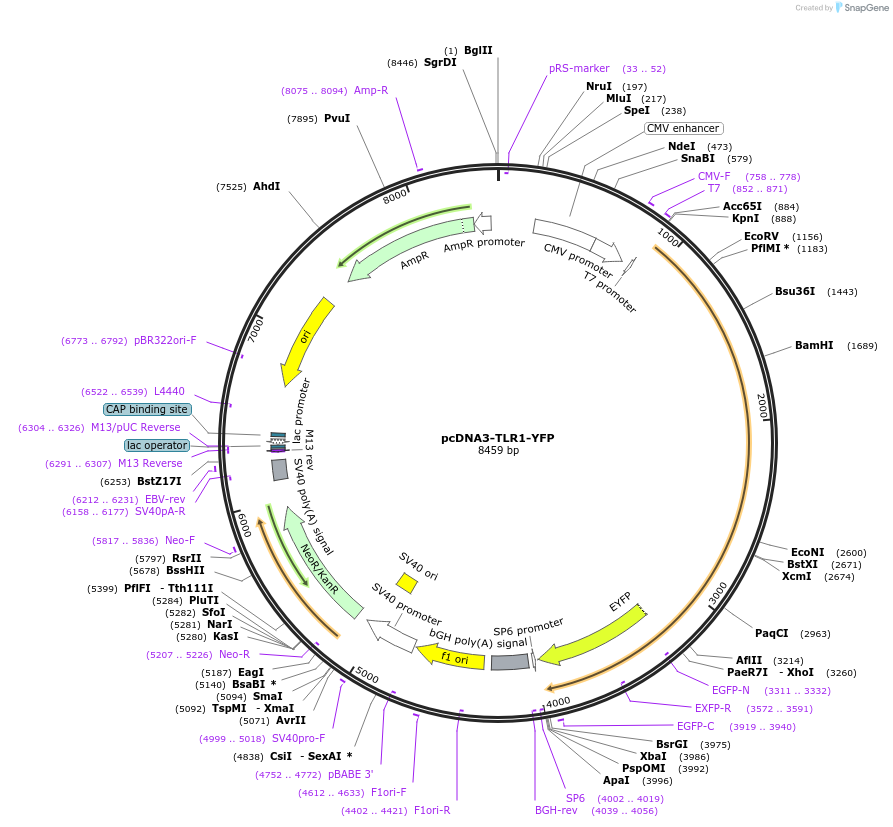

pcDNA3-TLR1-YFP
(Plasmid #13014)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 13014 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3-YFP
  • Backbone size w/o insert (bp) 6100
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Toll-Like Receptor 1
  • Alt name
    TLR1
  • Alt name
    CD281
  • Alt name
    TIL
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2358
  • GenBank ID
    BC109093
  • Entrez Gene
    TLR1 (a.k.a. CD281, TIL, TIL. LPRS5, rsc786)
  • Tag / Fusion Protein
    • YFP (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI / BglII (destroyed during cloning)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer GTCTTGTAGTTGCCGTCGTC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The primer for sequencing out the 5' end of the GFP based constructs (GFP/EGFP, CFP, YFP) is 5'- GTCTTGTAGTTGCCGTCGTC -3'

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-TLR1-YFP was a gift from Doug Golenbock (Addgene plasmid # 13014 ; http://n2t.net/addgene:13014 ; RRID:Addgene_13014)
