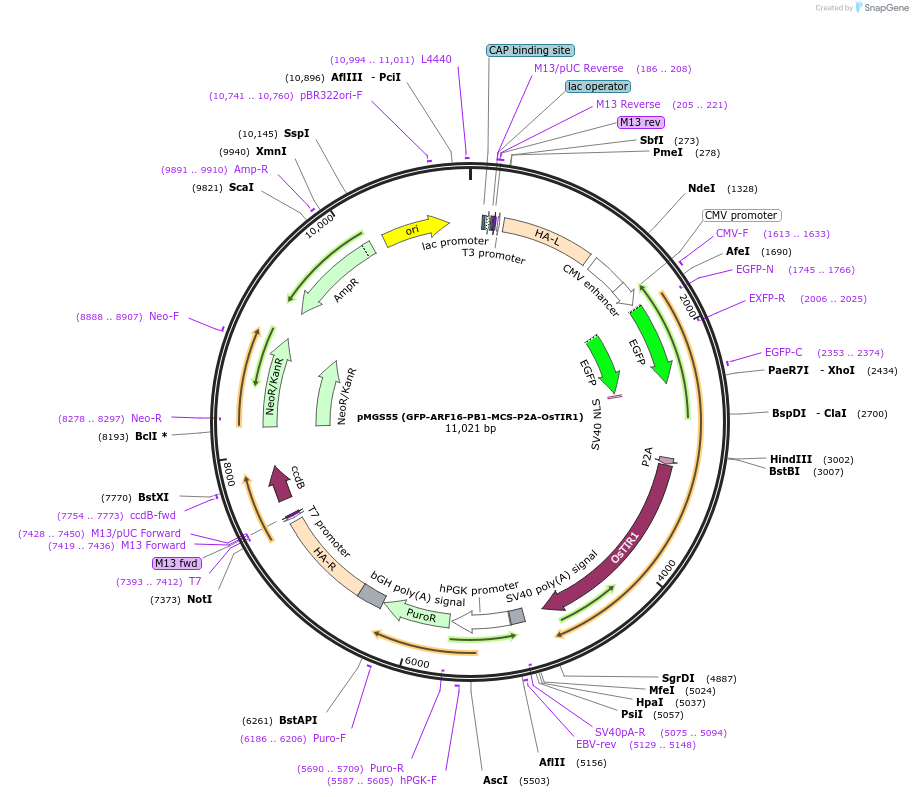

pMGS55 (GFP-ARF16-PB1-MCS-P2A-OsTIR1)
(Plasmid
#129667)
-
PurposeA repair construct to express GFP-ARF16-PB1-MCS and OsTIR1 under the control of the CMV promoter from the human AAVS1 locus
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 129667 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepMK232
-
Backbone manufacturerMasato Kanemaki (Addgene plasmid # 72834)
- Backbone size w/o insert (bp) 9590
-
Vector typeMammalian Expression
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameOsARF16-PB1 domain
-
SpeciesOryza sativa
-
Insert Size (bp)1437
-
Tag
/ Fusion Protein
- GFP (N terminal on insert)
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer EGFP-C (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
This plasmid has GFP-ARF16-PB1 in translation fusion with OsTIR1.
Please visit https://www.biorxiv.org/content/10.1101/585927v2 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pMGS55 (GFP-ARF16-PB1-MCS-P2A-OsTIR1) was a gift from Michael Guertin (Addgene plasmid # 129667 ; http://n2t.net/addgene:129667 ; RRID:Addgene_129667) -
For your References section:
An improved auxin-inducible degron system preserves native protein levels and enables rapid and specific protein depletion. Sathyan KM, McKenna BD, Anderson WD, Duarte FM, Core L, Guertin MJ. Genes Dev. 2019 Oct 1;33(19-20):1441-1455. doi: 10.1101/gad.328237.119. Epub 2019 Aug 29. 10.1101/gad.328237.119 PubMed 31467088
