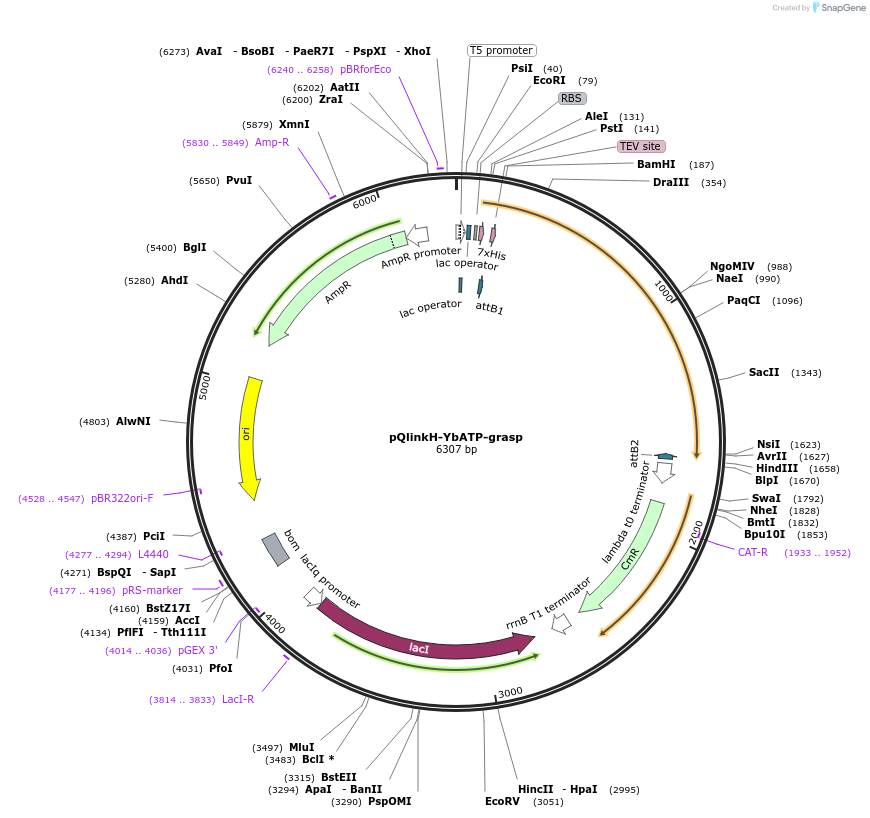

pQlinkH-YbATP-grasp
(Plasmid #129639)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 129639 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pQlinkH
  • Backbone size w/o insert (bp) 4901
  • Total vector size (bp) 6307
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    YbATP-grasp
  • Species
    Yersinia bercovieri
  • Insert Size (bp)
    1440
  • GenBank ID
    CNF23998.1 CNI95936.1
  • Promoter pQE
  • Tag / Fusion Protein
    • His6-tag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site AvrII (not destroyed)
  • 5′ sequencing primer TAACAACACCATTT
  • 3′ sequencing primer GTTCTGAGGTCATTACTGG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pQlinkH-YbATP-grasp was a gift from Matthias Bochtler (Addgene plasmid # 129639 ; http://n2t.net/addgene:129639 ; RRID:Addgene_129639)

  • For your References section:

    The Y. bercovieri Anbu crystal structure sheds light on the evolution of highly (pseudo)symmetric multimers. Piasecka A, Czapinska H, Vielberg MT, Szczepanowski RH, Kiefersauer R, Reed S, Groll M, Bochtler M. J Mol Biol. 2018 Mar 2;430(5):611-627. doi: 10.1016/j.jmb.2017.11.016. Epub 2017 Dec 16. 10.1016/j.jmb.2017.11.016 PubMed 29258816
