pFB1_hPMS2
(Plasmid #129425)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 129425 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pFastBac 1
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 4776
  • Total vector size (bp) 7333
  • Modifications to backbone

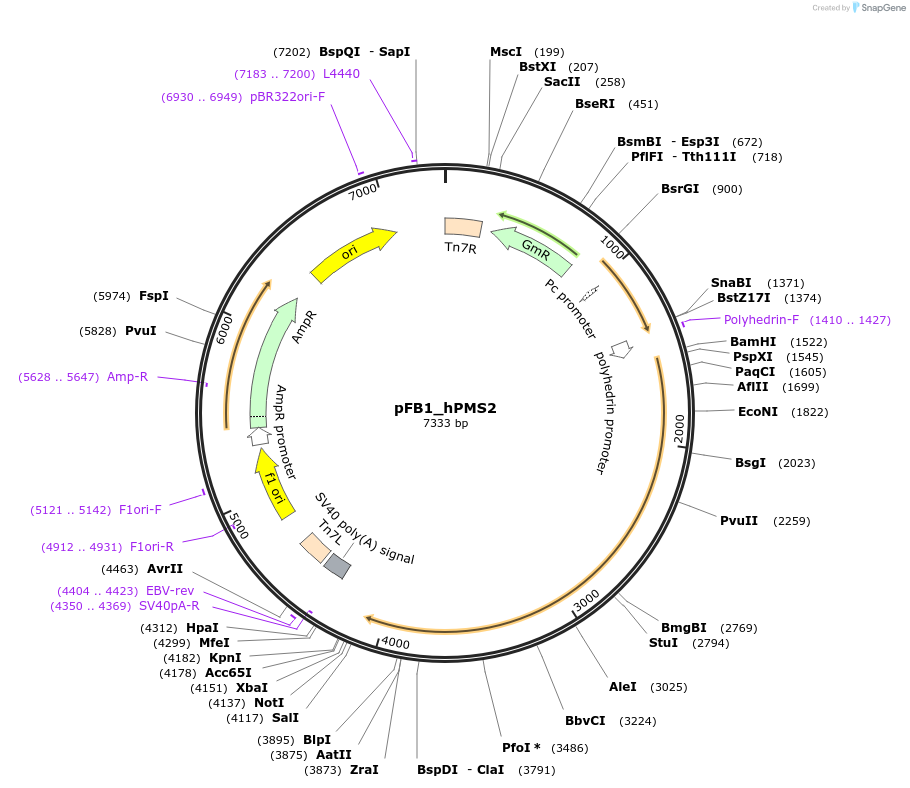

    hPMS2 is inserted in MCS (5'- BamH 1 and 3'- Sal I) of pFastBac 1. 5' sequencing primer covers nucleotides from 112-142 of hPMS2, but antiparallel, 3' sequencing primer covers nucleotides from 2456-2490 of hPMS2. They are used to sequence junction of the insert. The plasmid is used to amplify and generate recombinant bacmid DNA. which will then be transfected into insect cells for virus generation and eventually for protein (hPMS2) expression.
  • Vector type
    Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    Use DH10Bac for bacmid expression.
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    human PMS2
  • Alt name
    DNA mismatch repair protein homolog (PMS2)
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2589
  • GenBank ID
    U14658
  • Entrez Gene
    PMS2 (a.k.a. HNPCC4, LYNCH4, MLH4, MMRCS4, PMS-2, PMS2CL, PMSL2)
  • Promoter Polyhedrin promoter

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamH I (not destroyed)
  • 3′ cloning site Sal I (not destroyed)
  • 5′ sequencing primer ccagactgttttctactaactcctttaccgc
  • 3′ sequencing primer ggactgctctcaacacaagcgagatgaagaaactg
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pFB1_hPMS2 was a gift from Peggy Hsieh (Addgene plasmid # 129425 ; http://n2t.net/addgene:129425 ; RRID:Addgene_129425)
  • For your References section:

    In vitro studies of DNA mismatch repair proteins. Geng H, Du C, Chen S, Salerno V, Manfredi C, Hsieh P. Anal Biochem. 2011 Jun 15;413(2):179-84. doi: 10.1016/j.ab.2011.02.017. Epub 2011 Feb 15. 10.1016/j.ab.2011.02.017 PubMed 21329650
