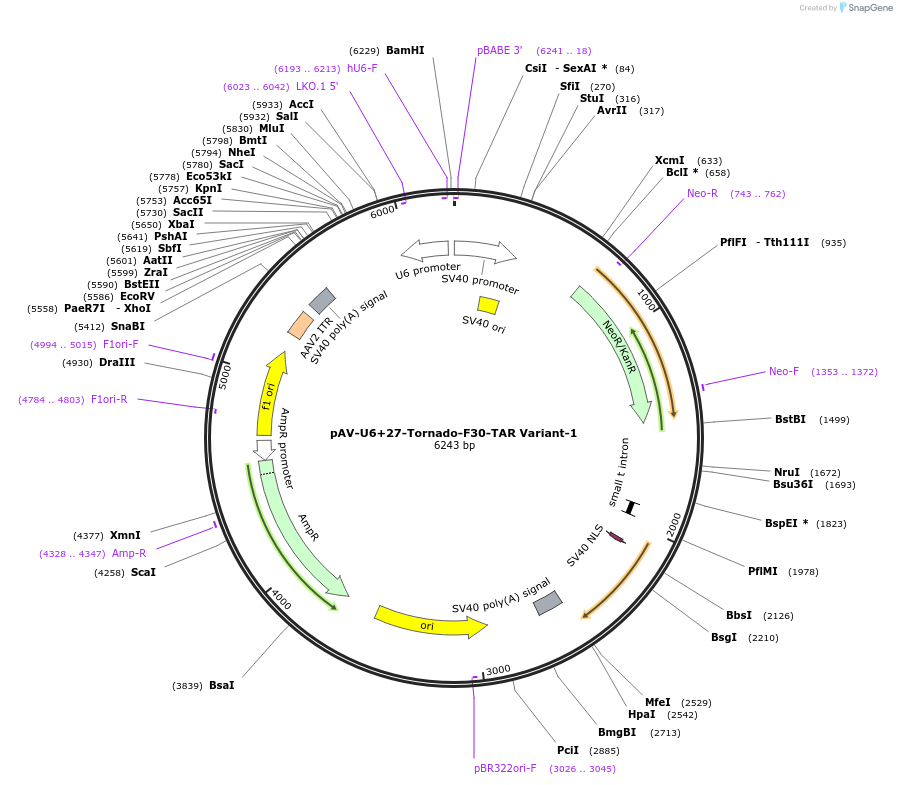

pAV-U6+27-Tornado-F30-TAR Variant-1
(Plasmid #129406)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 129406 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAV U6+27
  • Backbone manufacturer
    Addgene plasmid # 25709
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    circular F30-TAR Variant-1
  • Species
    Synthetic
  • Insert Size (bp)
    276
  • GenBank ID
    MN052909 MN052909
  • Promoter U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Sal1 (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer GACTATCATATGCTTACCGT
  • 3′ sequencing primer GAAATTTGTGATGCTATTGC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAV-U6+27-Tornado-F30-TAR Variant-1 was a gift from Samie Jaffrey (Addgene plasmid # 129406 ; http://n2t.net/addgene:129406 ; RRID:Addgene_129406)

  • For your References section:

    Live imaging of mRNA using RNA-stabilized fluorogenic proteins. Wu J, Zaccara S, Khuperkar D, Kim H, Tanenbaum ME, Jaffrey SR. Nat Methods. 2019 Sep;16(9):862-865. doi: 10.1038/s41592-019-0531-7. Epub 2019 Aug 30. 10.1038/s41592-019-0531-7 PubMed 31471614
