pAAV-CAG-DIO-(STChRger2-TS-EYFP)
(Plasmid #129394)

• Purpose: Soma Targeted, High photocurrent, low-light sensitive channelrhodopsin (ChRger2) for optogenetic activation with systemic delivery or for low-light activation. Uses the CAG promoter and double floxed.
• Depositing Lab: Viviana Gradinaru
• Publication: Bedbrook et al Nat Methods. 2019 Oct 14. pii: 10.1038/s41592-019-0583-8. doi: 10.1038/s41592-019-0583-8.

Want a viral vector made from this plasmid?

Make a packaging request and we'll get back to you.

This service is available to academics and nonprofits only.

Please log in to submit a packaging request.

• Serotype: Select serotype for details See details about
• Pricing: Select serotype and quantity $ USD for preparation of µL virus + $30 USD for plasmid.
• How this works:
  • Place a request for a quantity of 10 (1 mL), 25 (2.5 mL), or 50 (5 mL). Our all-inclusive pricing includes DNA production and QC.
  • Addgene will quickly confirm that we can produce a high-quality prep for you.
  • Track your request and place an order from within your account. Payment information must be added before we can begin processing your order.
  • Receive your prep in 6–9 weeks after the MTA is approved by your organization.
  • Learn more about our Packaged on Request Service.

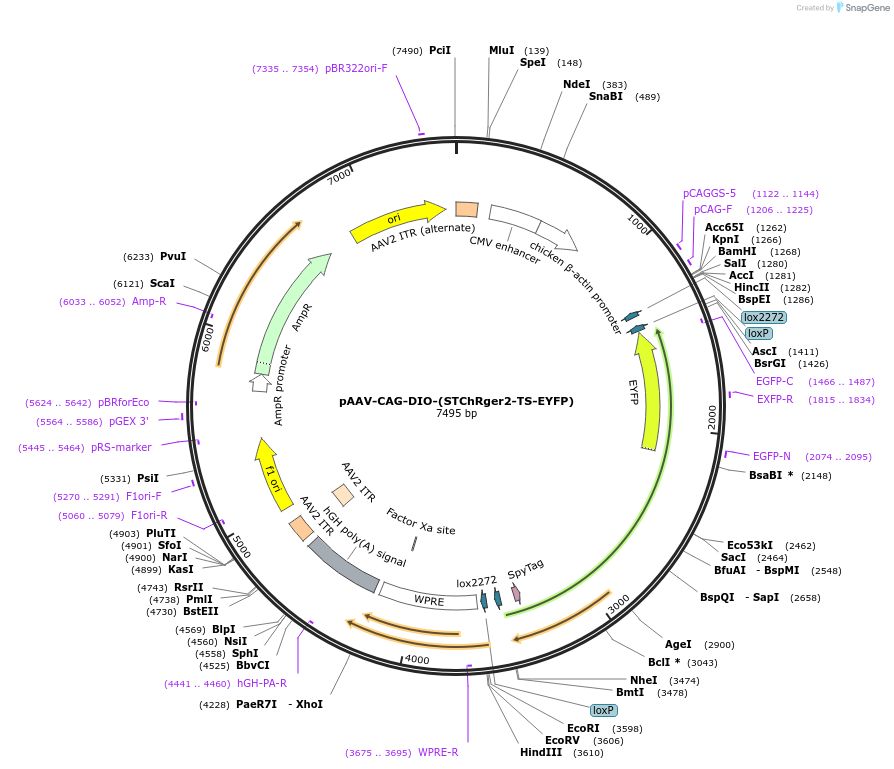

Backbone

• Vector backbone: pAAV CAG DIO WPRE pA
• Backbone size w/o insert (bp): 5457
• Total vector size (bp): 7506
• Vector type: Mammalian Expression, AAV, Cre/Lox

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 30°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: soma targeted ChRger2
• Alt name: STChRger2-TS-EYFP
• Alt name: STChRger2
• Insert Size (bp): 2049
• Promoter: CAG
• Tag / Fusion Protein:
  • Kv2.1-TS-EYFP (C terminal on insert)

Cloning Information

• Cloning method: Ligation Independent Cloning
• 5′ sequencing primer: GcttcgttacGCCgagtgg
• 3′ sequencing primer: CATAGCGTAAAAGGAGCAACA

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Depositor has evidence that soma-targeted constructs may have different optical properties from their parent ChRgers and they have not been fully characterized. Users should be aware that they are beta-testing.
