pTAMAHISTEV_Ab-PirA
(Plasmid #128959)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 128959 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

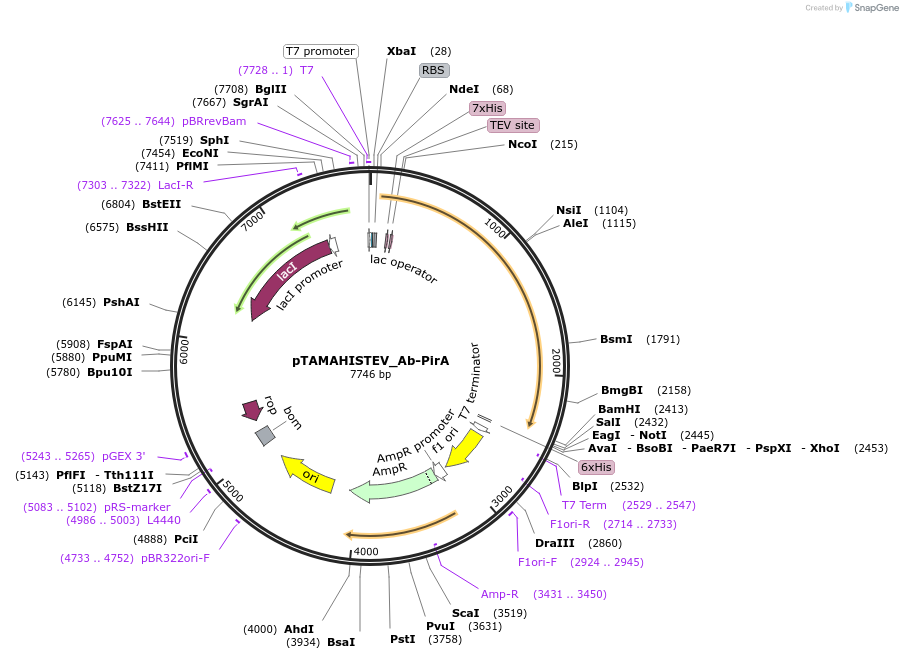

Backbone

  • Vector backbone
    pTAMAHISTEV
  • Backbone size w/o insert (bp) 5566
  • Total vector size (bp) 7746
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    ferric enterobactin receptor PirA
  • Alt name
    Ab-PirA
  • Alt name
    A1S_0980
  • Species
    Acinetobacter baumannii strain ATC 19606
  • Insert Size (bp)
    2400
  • Mutation
    Signal peptide sequence has been removed
  • Promoter T7
  • Tags / Fusion Proteins
    • TEV protease cleavable 7xHis (N terminal on backbone)
    • TamA (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NcoI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer T7 promoter
  • 3′ sequencing primer T7 terminator
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

pTAMAHISTEV vector has been obtained by replacing pelB signal peptide of pEPELBHISTEV (courtesy of Dr. Huanting Liu, University St Andrews) bt tamA signal peptide

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTAMAHISTEV_Ab-PirA was a gift from James Naismith (Addgene plasmid # 128959 ; http://n2t.net/addgene:128959 ; RRID:Addgene_128959)

  • For your References section:

    Structure and Function of the PiuA and PirA Siderophore-Drug Receptors from Pseudomonas aeruginosa and Acinetobacter baumannii. Moynie L, Luscher A, Rolo D, Pletzer D, Tortajada A, Weingart H, Braun Y, Page MG, Naismith JH, Kohler T. Antimicrob Agents Chemother. 2017 Mar 24;61(4). pii: AAC.02531-16. doi: 10.1128/AAC.02531-16. Print 2017 Apr. 10.1128/AAC.02531-16 PubMed 28137795
