pJBL3752
(Plasmid
#128809)
-
PurposeFluoride riboswitch-regulated sfGFP
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 128809 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneSynthetic
- Backbone size w/o insert (bp) 2204
- Total vector size (bp) 3205
-
Vector typeBacterial Expression, Synthetic Biology
-
Selectable markersChloramphenicol
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameFluoride riboswitch-regulated sfGFP
-
SpeciesSynthetic
-
Insert Size (bp)1001
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJBL3752 was a gift from Julius Lucks (Addgene plasmid # 128809 ; http://n2t.net/addgene:128809 ; RRID:Addgene_128809) -
For your References section:
Point-of-Use Detection of Environmental Fluoride via a Cell-Free Riboswitch-Based Biosensor. Thavarajah W, Silverman AD, Verosloff M, Kelley-Loughnane N, Jewett MC, Lucks JB. ACS Synth Biol. 2019 Dec 12. doi: 10.1021/acssynbio.9b00347. 10.1021/acssynbio.9b00347 PubMed 31829623

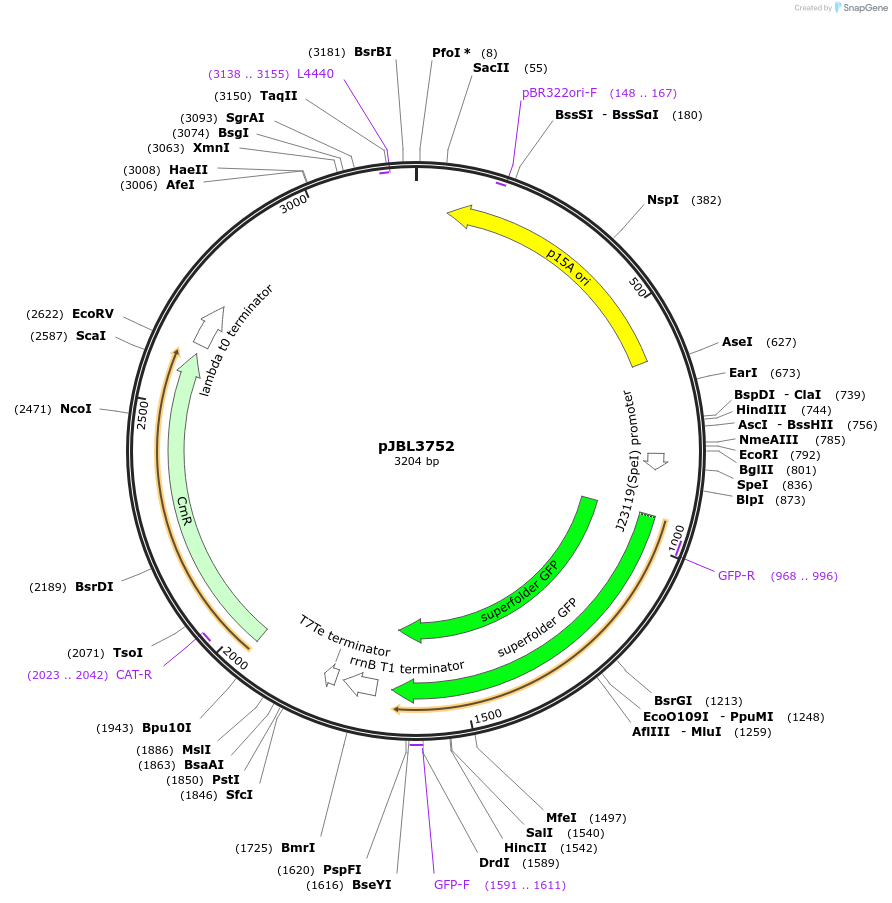

Map uploaded by the depositor.
