pMTG01-Amp-FRT
(Plasmid #128270)

• Purpose: Plasmid that produces the following fusion protein: TetR-LOV-TIP
• Depositing Lab: Gabor Balazsi
• Publication: Guinn et al Nucleic Acids Res. 2019 Jul 3. pii: 5527975. doi: 10.1093/nar/gkz556.

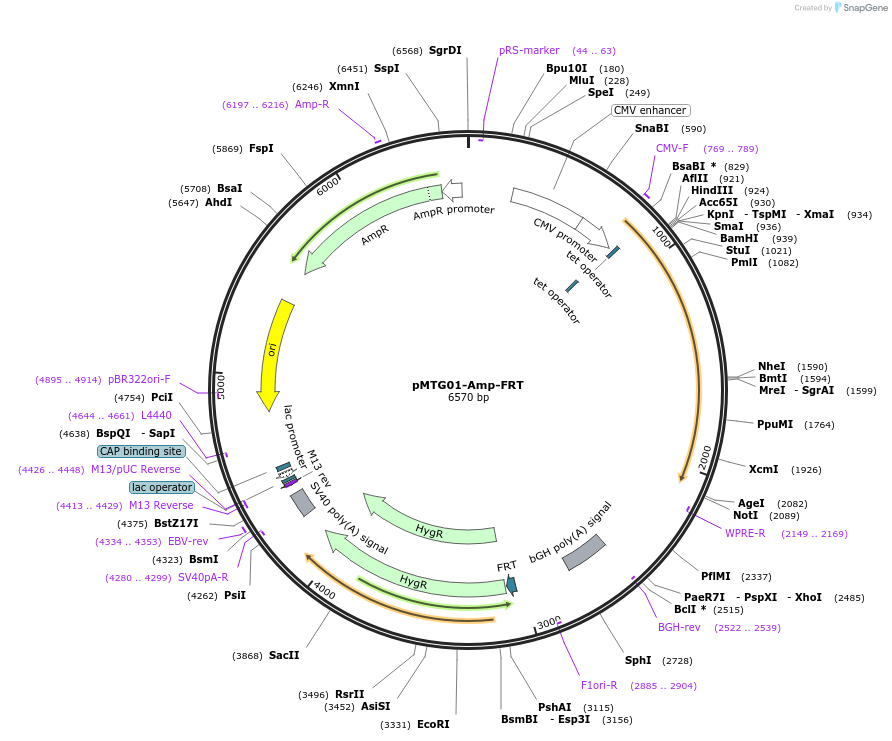

Backbone

• Vector backbone: pCB-D2irTN5kwh
• Total vector size (bp): 6570
• Vector type: Mammalian Expression
• Selectable markers: Hygromycin

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: TetR-LOV-TIP
• Alt name: Tetracycline repressor, Light-oxygen-voltage-sensing domain, tet-inhibiting peptide
• Species: Synthetic
• Promoter: CMV

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BamHI (not destroyed)
• 3′ cloning site: AgeI (not destroyed)
• 5′ sequencing primer: tttttggctactacacttg

Resource Information

• Supplemental Documents:
  • pMTG01.gbk

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Additional relevant information can be found from this publciation: Nevozhay et al Nat Commun. 2013 Feb 5;4:1451. doi: 10.1038/ncomms2471
