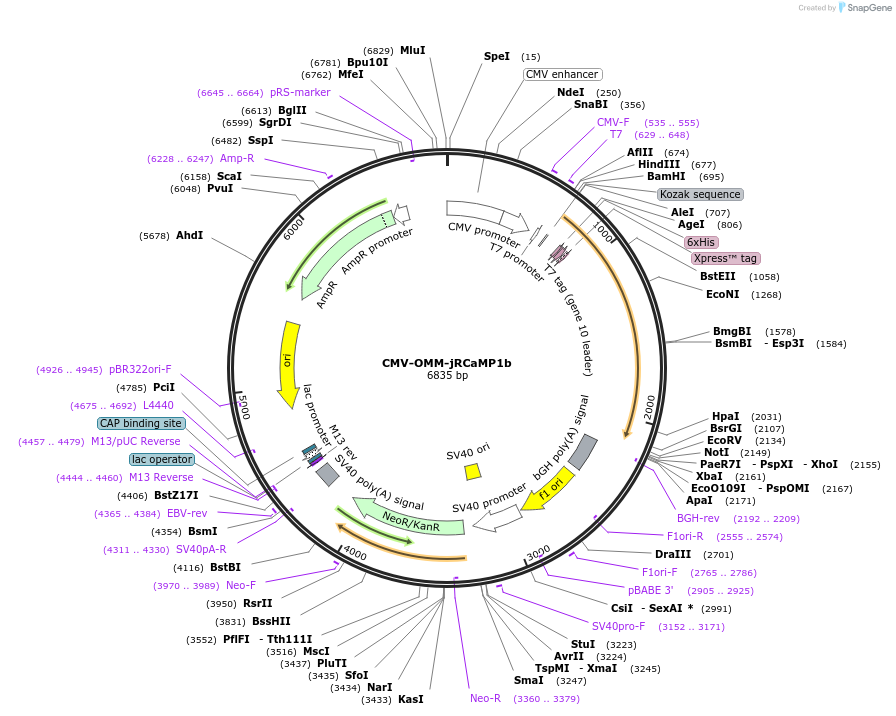

CMV-OMM-jRCaMP1b
(Plasmid #127871)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 127871 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3
  • Backbone size w/o insert (bp) 5394
  • Total vector size (bp) 6819
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    OMM-jRCaMP1b (Red-shifted outer membrane Ca2+ indicator)
  • Species
    Synthetic
  • Promoter CMV

Cloning Information

  • Cloning method Unknown
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer TAGAAGGCACAGTCGAG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CMV-OMM-jRCaMP1b was a gift from Timothy Ryan (Addgene plasmid # 127871 ; http://n2t.net/addgene:127871 ; RRID:Addgene_127871)

  • For your References section:

    Molecular Tuning of the Axonal Mitochondrial Ca(2+) Uniporter Ensures Metabolic Flexibility of Neurotransmission. Ashrafi G, de Juan-Sanz J, Farrell RJ, Ryan TA. Neuron. 2019 Dec 10. pii: S0896-6273(19)30984-5. doi: 10.1016/j.neuron.2019.11.020. 10.1016/j.neuron.2019.11.020 PubMed 31862210
