pEMY01CD-TER
(Plasmid
#127751)
-
Purpose(Empty Backbone) Integrative yeast terminator characterization plasmid. Clone in with BpiI. Has mVenus fragment upstream and a KanMX fragment downstream.
-
Depositing Lab
-

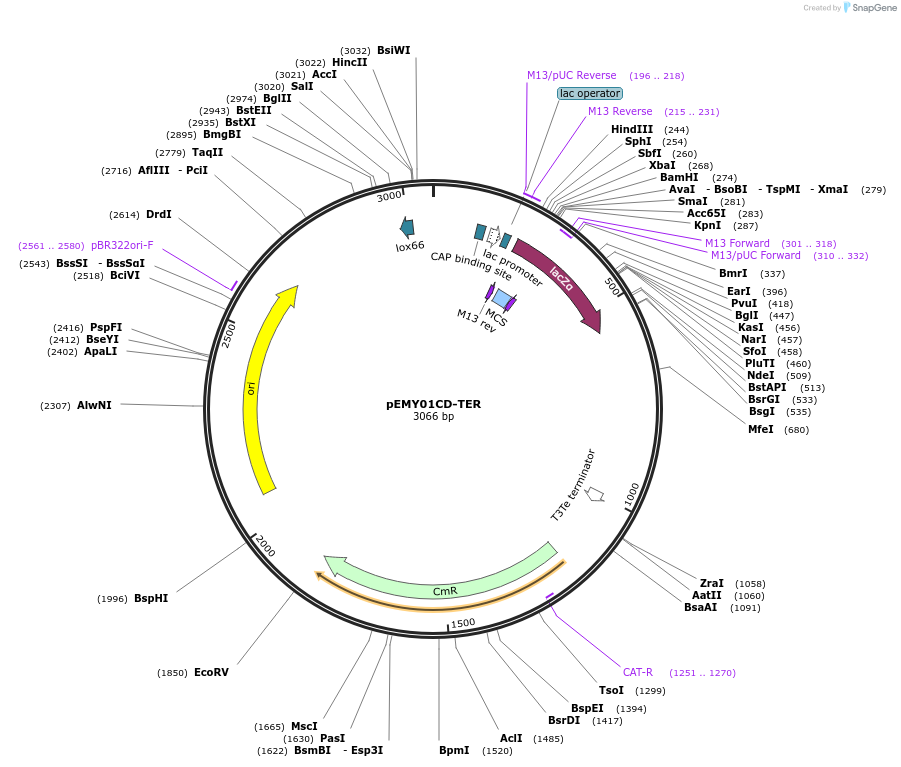

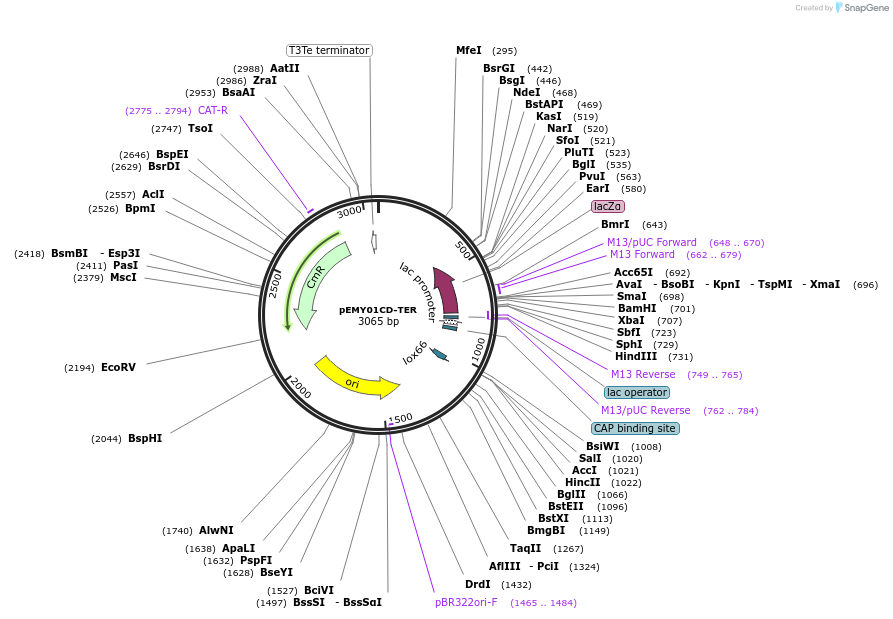

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 127751 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepEMY11
-
Vector typeYeast Expression, Synthetic Biology
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer GTTATCCCCTGATTCTGTGG
- 3′ sequencing primer ATTCAGCAATTTGCCCG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Terminator characterization cassette for terminator expression strength when integrated into ChrXV of S. cerevisiae.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pEMY01CD-TER was a gift from Christopher Voigt (Addgene plasmid # 127751 ; http://n2t.net/addgene:127751 ; RRID:Addgene_127751) -
For your References section:
Iterative algorithm-guided design of massive strain libraries, applied to itaconic acid production in yeast. Young EM, Zhao Z, Gielesen BEM, Wu L, Benjamin Gordon D, Roubos JA, Voigt CA. Metab Eng. 2018 Jul;48:33-43. doi: 10.1016/j.ymben.2018.05.002. Epub 2018 May 9. 10.1016/j.ymben.2018.05.002 PubMed 29753070
