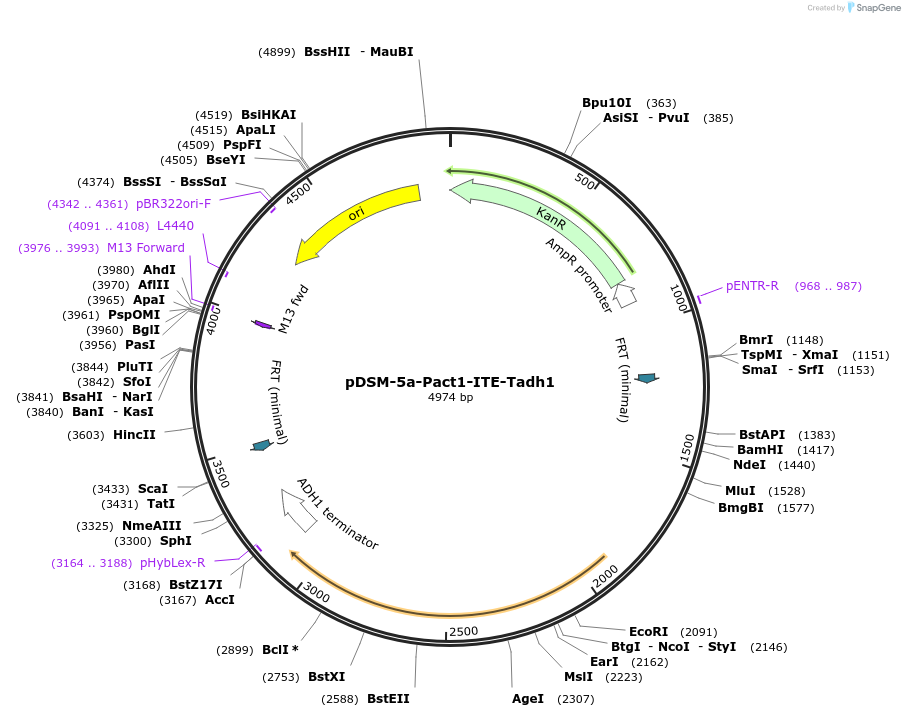

pDSM-5a-Pact1-ITE-Tadh1
(Plasmid #127723)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 127723 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pDSM-5a
  • Vector type
    Yeast Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    itaconate transporter from A. terreus
  • Alt name
    ITE
  • Species
    Aspergillus terreus
  • Insert Size (bp)
    1228
  • GenBank ID
    MH366509.1
  • Promoter Pact1

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsaI (destroyed during cloning)
  • 3′ cloning site BsaI (destroyed during cloning)
  • 5′ sequencing primer AAGCGACTTCCAATCGCTTTGC
  • 3′ sequencing primer AAAGCAAAGGAAGGAGAGAAC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

ITE transcription unit with pathway position 1 homology arms, compatible with 5' ChrXV homology arm (5int) and 3' position 2 homology arm. Sequencing primers are also the primers for amplifying DNA for integration into the S. cerevisiae genome.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDSM-5a-Pact1-ITE-Tadh1 was a gift from Christopher Voigt (Addgene plasmid # 127723 ; http://n2t.net/addgene:127723 ; RRID:Addgene_127723)

  • For your References section:

    Iterative algorithm-guided design of massive strain libraries, applied to itaconic acid production in yeast. Young EM, Zhao Z, Gielesen BEM, Wu L, Benjamin Gordon D, Roubos JA, Voigt CA. Metab Eng. 2018 Jul;48:33-43. doi: 10.1016/j.ymben.2018.05.002. Epub 2018 May 9. 10.1016/j.ymben.2018.05.002 PubMed 29753070
