yeast_DualReporter
(Plasmid
#127546)
-

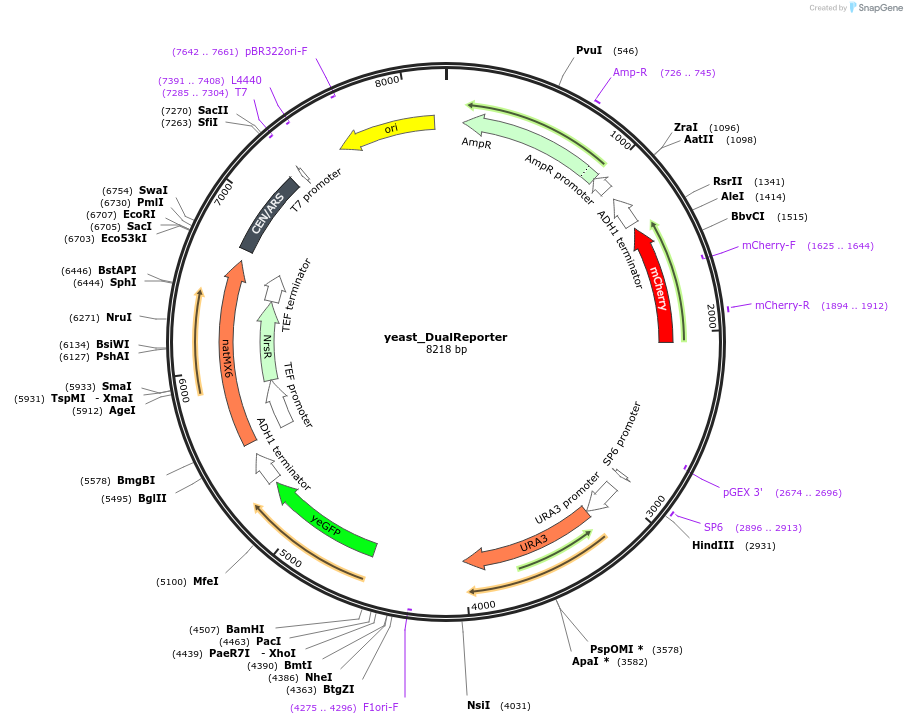

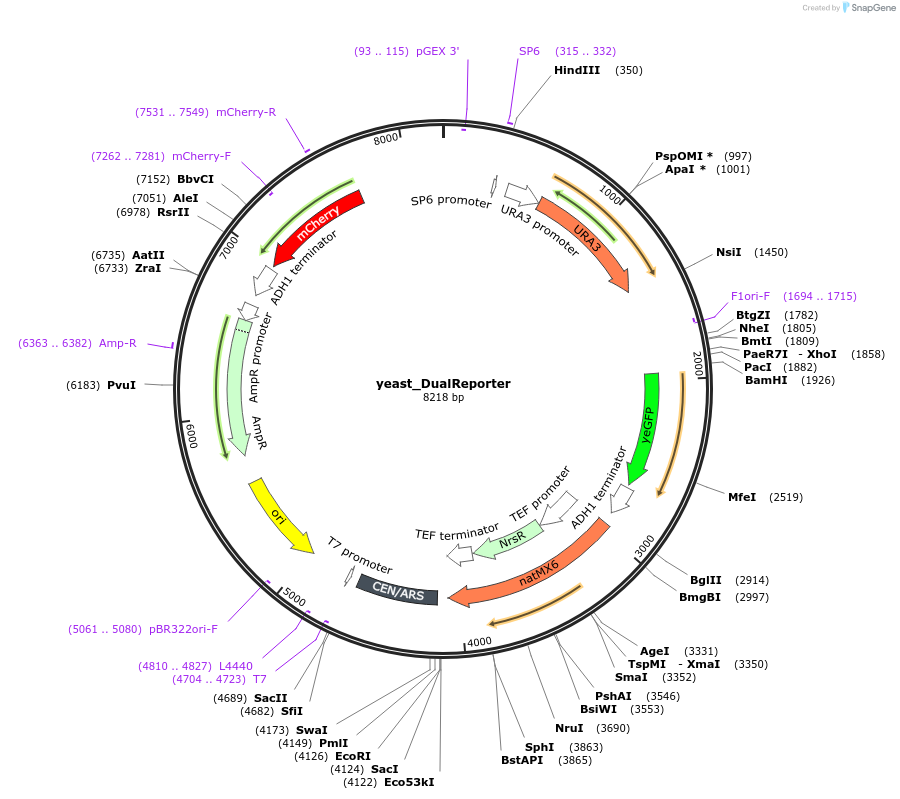

PurposeA dual reporter vector modified from Sharon et al (Nature Biotech, 2012) containing Ura3 and Nat1 selectable markers, a constant background RFP (TEF2::mCherry), and a variable YFP (pTpA+MCS::yEVenus).
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 127546 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepPAL1_His3core
-
Backbone manufacturerSharon et al NBT 2012 (Eran Segal's group)
- Total vector size (bp) 8218
-
Modifications to backboneyEVenus promoter replaced with minimal promoter and multiple cloning site.
-
Vector typeYeast Expression, Synthetic Biology
-
Selectable markersURA3 ; Nourseothricin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert 1
-
Gene/Insert namebla
-
Alt nameampicillin resistance
-
Alt nameAmpR
-
Alt namebeta-lactamase
-
Speciesbacteria
-
Insert Size (bp)861
- Promoter bla (E. coli)
Cloning Information for Gene/Insert 1
- Cloning method Unknown
- 5′ sequencing primer NA (Common Sequencing Primers)
Gene/Insert 2
-
Gene/Insert namemCherry
-
Alt nameRFP
-
SpeciesSynthetic
-
Insert Size (bp)711
- Promoter TEF2
Cloning Information for Gene/Insert 2
- Cloning method Unknown
- 5′ sequencing primer NA (Common Sequencing Primers)
Gene/Insert 3
-
Gene/Insert nameURA3
-
SpeciesS. cerevisiae (budding yeast)
-
Insert Size (bp)804
-
Entrez GeneURA3 (a.k.a. YEL021W)
- Promoter URA3
Cloning Information for Gene/Insert 3
- Cloning method Unknown
- 5′ sequencing primer NA (Common Sequencing Primers)
Gene/Insert 4
-
Gene/Insert nameyEVenus
-
Alt nameYFP
-
SpeciesSynthetic
-
Insert Size (bp)717
- Promoter pTpA+MCS
Cloning Information for Gene/Insert 4
- Cloning method Gibson Cloning
- 5′ sequencing primer agtgttgttccagtttgg
- 3′ sequencing primer cggagacagaaaatttgtg (Common Sequencing Primers)
Gene/Insert 5
-
Gene/Insert nameNat1
-
Alt namenourseothricin resistance
-
Alt namenourseothricin acetyltransferase
- Promoter TEF
Cloning Information for Gene/Insert 5
- Cloning method Unknown
- 5′ sequencing primer NA (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/224907v3 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
yeast_DualReporter was a gift from Aviv Regev (Addgene plasmid # 127546 ; http://n2t.net/addgene:127546 ; RRID:Addgene_127546) -
For your References section:
Deciphering eukaryotic gene-regulatory logic with 100 million random promoters. de Boer CG, Vaishnav ED, Sadeh R, Abeyta EL, Friedman N, Regev A. Nat Biotechnol. 2020 Jan;38(1):56-65. doi: 10.1038/s41587-019-0315-8. Epub 2019 Dec 2. 10.1038/s41587-019-0315-8 PubMed 31792407
