pENTR_L1-BirA(R118G)-YFP-NLS-STOP-L2
(Plasmid #127360)

• Purpose: gateway entry vector for expressing nuclear BirA* (R118G)-YFP under a promoter of choice
• Depositing Lab: Dominique Bergmann
• Publication: Mair et al Elife. 2019 Sep 19;8. pii: 47864. doi: 10.7554/eLife.47864.

Backbone

• Vector backbone: pENTR
• Total vector size (bp): 4355
• Vector type: gateway entry vector

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: BirA* (R118G mutant)
• Species: BirA from E. coli, codon optimized for human and mutated
• Insert Size (bp): 957
• Mutation: R118G
• Promoter: no promoter
• Tags / Fusion Proteins:
  • V5 (N terminal on insert)
  • GS linker (C terminal on insert)
  • YFP (C terminal on insert)
  • NLS (C terminal on insert)

Cloning Information

• Cloning method: Unknown
• 5′ sequencing primer: M13 fw
• 3′ sequencing primer: M13 rv

Resource Information

• Supplemental Documents:

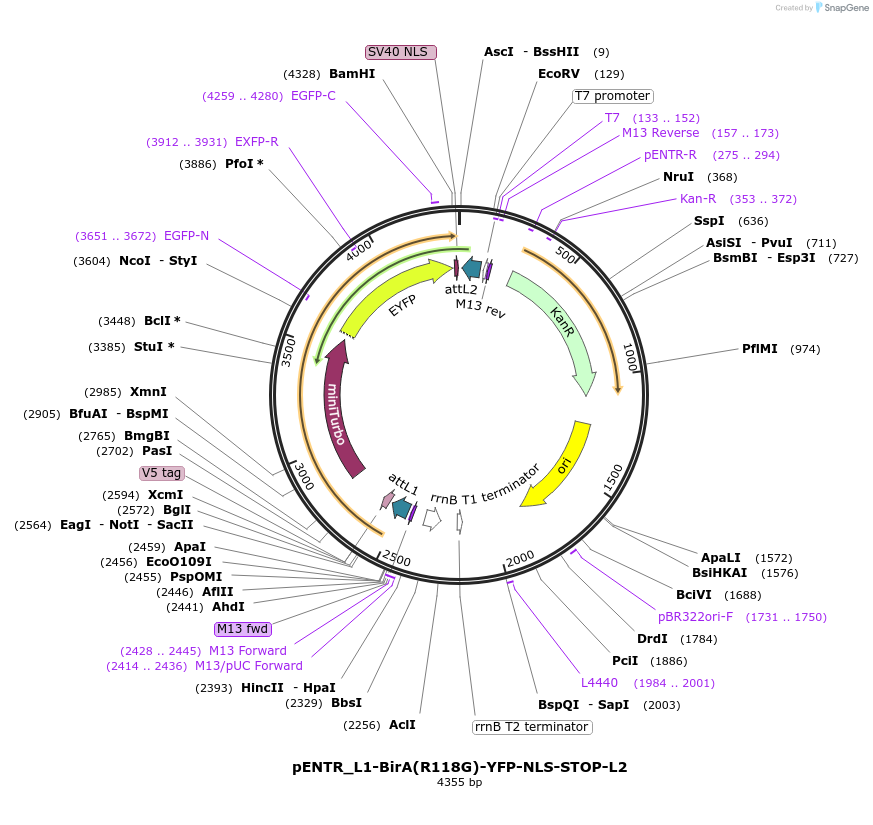

  • pENTR_L1-BirA(R118G)-YFP-NLS-STOP-L2.gb
• A portion of this plasmid was derived from a plasmid made by: BirA* was obtained from Alice Ting's lab at Stanford University (cloned from V5-hBirA(R118G)-NES_pCDNA3).

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
