pcDNA-Flag-LmoCas6
(Plasmid
#126485)
-
PurposeEncodes L.monocytogenes CRISPR Type I-B Cas6 with N-terminal fusion of Flag tag epitope and nuclear localization signal driven by CMV promoter
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 126485 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepcDNA
- Total vector size (bp) 6117
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameLmoCas6
-
Insert Size (bp)783
- Promoter CMV
-
Tag
/ Fusion Protein
- Flag, NLS (N terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer TAATACGACTCACTATAGG (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA-Flag-LmoCas6 was a gift from Charles Gersbach (Addgene plasmid # 126485 ; http://n2t.net/addgene:126485 ; RRID:Addgene_126485) -
For your References section:
Targeted transcriptional modulation with type I CRISPR-Cas systems in human cells. Pickar-Oliver A, Black JB, Lewis MM, Mutchnick KJ, Klann TS, Gilcrest KA, Sitton MJ, Nelson CE, Barrera A, Bartelt LC, Reddy TE, Beisel CL, Barrangou R, Gersbach CA. Nat Biotechnol. 2019 Sep 23. pii: 10.1038/s41587-019-0235-7. doi: 10.1038/s41587-019-0235-7. 10.1038/s41587-019-0235-7 PubMed 31548729

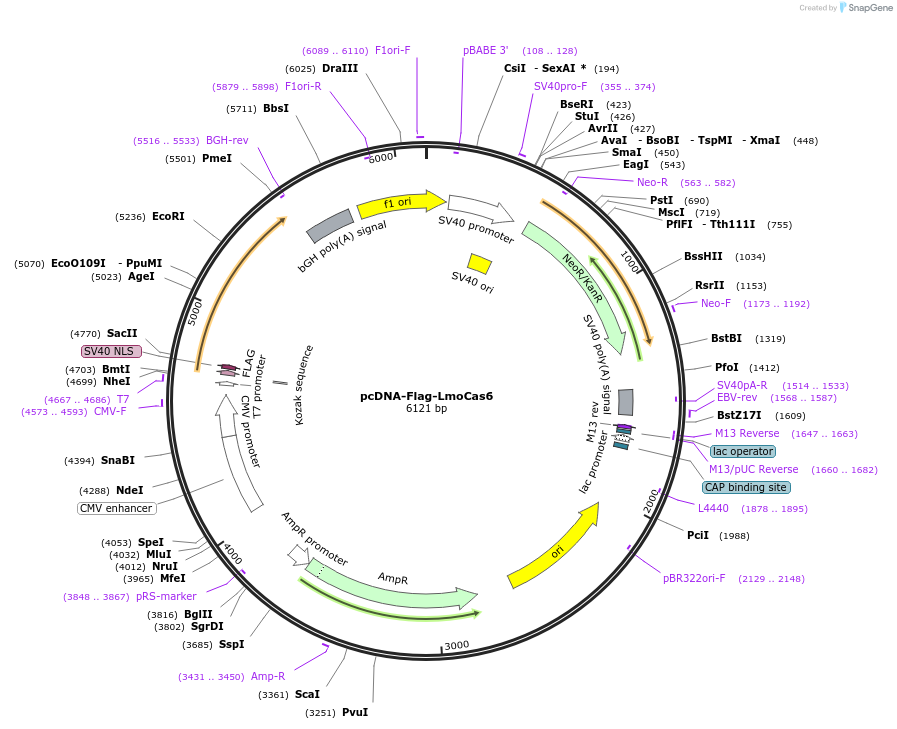

Map uploaded by the depositor.
