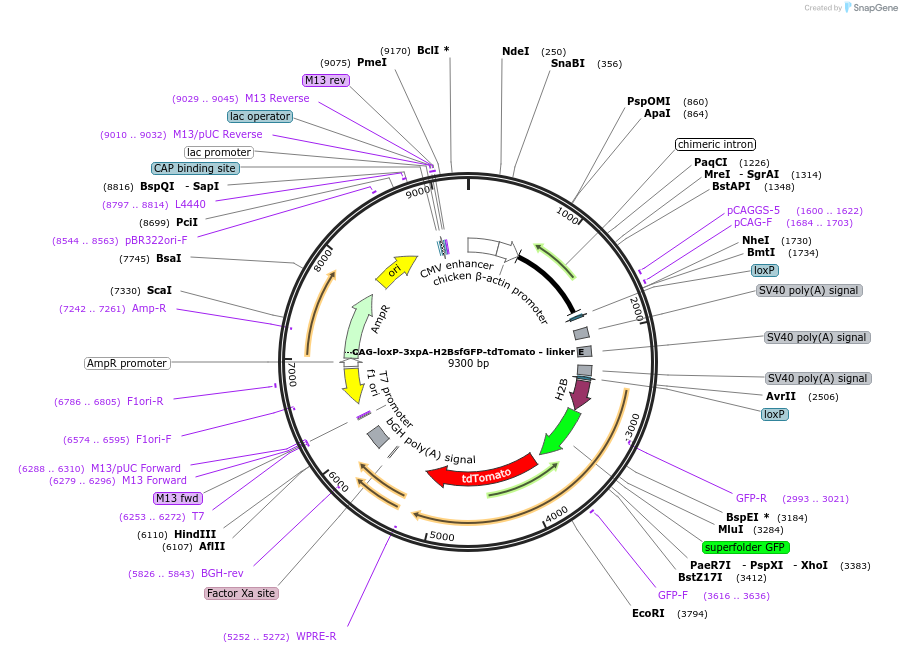

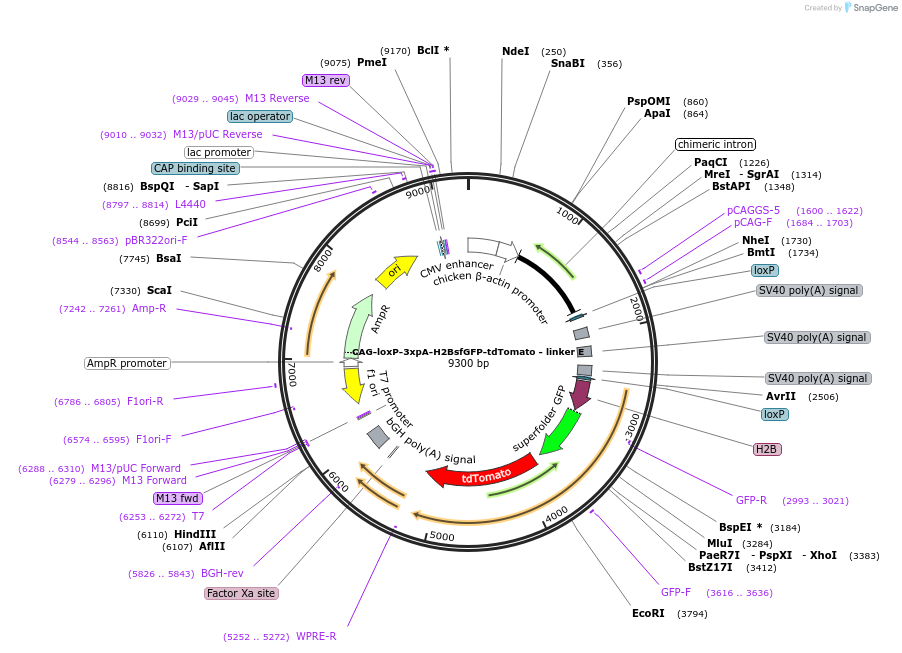

CAG-loxP-3xpA-H2BsfGFP-tdTomato - linker E
(Plasmid #125797)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 125797 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    Custom
  • Vector type
    Mammalian Expression, Cre/Lox

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    DH10B
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    H2BsfGFP-tdTomato
  • Species
    Synthetic

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    CAG promoter is from pCAGGS obtained from BCCM/LMBP. SV40 pA is from Clontech. H2B is from plasmid #20972. sfGFP is from Sandia Biotech. tdTomato is from Roger Tsien. WPRE is from Miguel Ramalho-Santos. bGH pA is from Neal Copeland. Backbone is from Stratagene.

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Linker between H2B-sfGFP and tdTomato is a mutated P2A sequence where 2 conserved amino acids are changed to Alanines. This mutated sequence does not skip.

Similar to the situation with some other plasmids in this collection, the missing four nucleotides at the 5' end of the WPRE renders it unrecognizable to SnapGene, but the expression vector is functional.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CAG-loxP-3xpA-H2BsfGFP-tdTomato - linker E was a gift from Mario Capecchi (Addgene plasmid # 125797 ; http://n2t.net/addgene:125797 ; RRID:Addgene_125797)

  • For your References section:

    Lrig1 expression prospectively identifies stem cells in the ventricular-subventricular zone that are neurogenic throughout adult life. Nam HS, Capecchi MR. Neural Dev. 2020 Mar 17;15(1):3. doi: 10.1186/s13064-020-00139-5. 10.1186/s13064-020-00139-5 PubMed 32183906
