pLX208-gLuc sp-NanoLuc-HA-oβ2AR-TS-eLOV-TEVcs-Flag-Gal4
(Plasmid
#125230)
-
PurposeFor generating SPARK NanoLuc-oβ2AR transmembrane component lentivirus
-
Depositing Lab
-

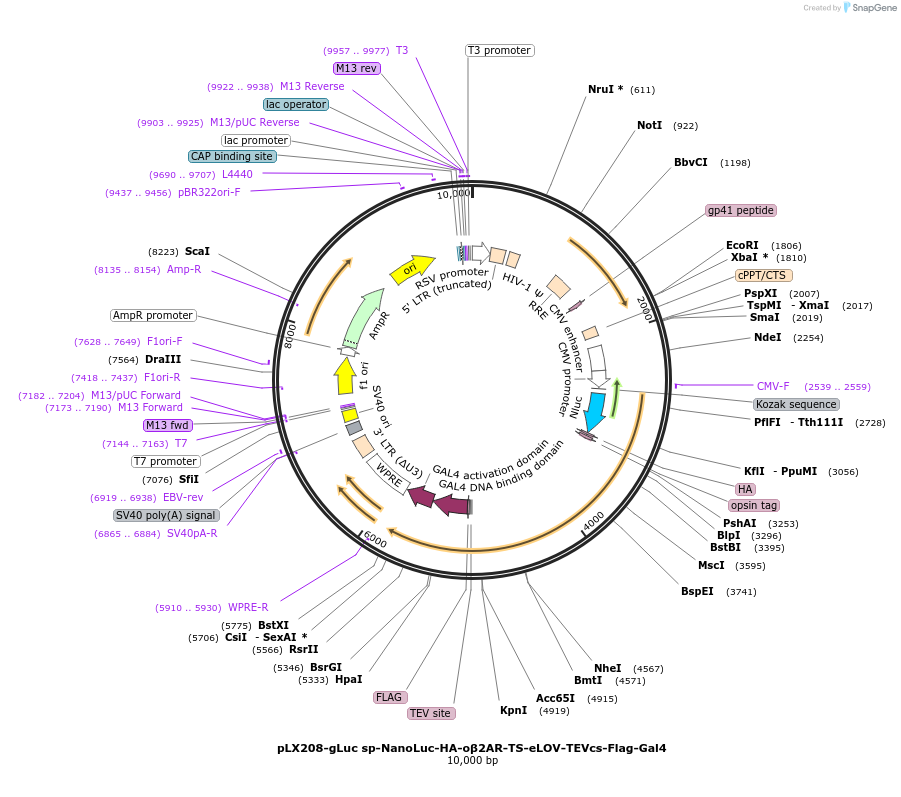

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 125230 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepLX208
-
Vector typeMammalian Expression, Lentiviral
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namegLuc sp-NanoLuc-HA-oβ2AR-TS-eLOV-TEVcs-Flag-Gal4
-
SpeciesSynthetic
- Promoter CMV
-
Tag
/ Fusion Protein
- HA,Flag
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV-F
- 3′ sequencing primer WPRE-R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLX208-gLuc sp-NanoLuc-HA-oβ2AR-TS-eLOV-TEVcs-Flag-Gal4 was a gift from Alice Ting (Addgene plasmid # 125230 ; http://n2t.net/addgene:125230 ; RRID:Addgene_125230) -
For your References section:
Luciferase-LOV BRET enables versatile and specific transcriptional readout of cellular protein-protein interactions. Kim CK, Cho KF, Kim MW, Ting AY. Elife. 2019 Apr 3;8. pii: 43826. doi: 10.7554/eLife.43826. 10.7554/eLife.43826 PubMed 30942168
