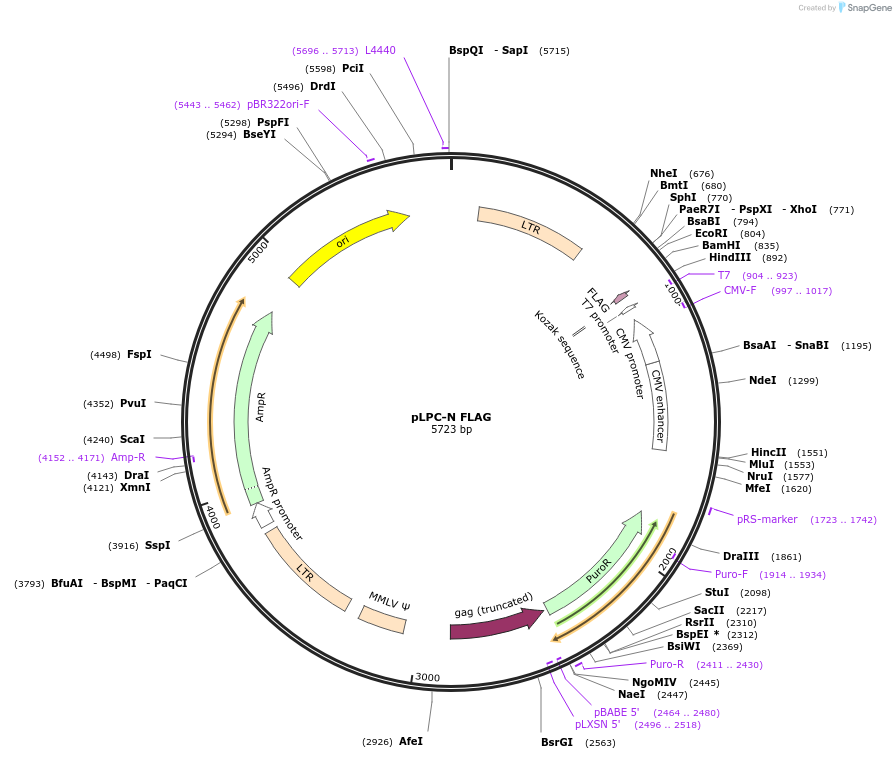

pLPC-N FLAG
(Plasmid #12521)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 12521 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLPC
  • Backbone size w/o insert (bp) 5600
  • Vector type
    Mammalian Expression, Retroviral
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    N FLAG
  • Alt name
    de Lange lab plasmid# 2408
  • Alt name
    N-terminal Flag tag
  • Alt name
    pLPC Flag, pLPC-Flag
  • Insert Size (bp)
    35
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (destroyed during cloning)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer pLPC-5 (5'-TAGGCGTGTACGGTGGGA-3')
  • 3′ sequencing primer pLPC-3 (5'-CTTGCCAAACCTACAGGT-3')
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLPC-N FLAG was a gift from Titia de Lange (Addgene plasmid # 12521 ; http://n2t.net/addgene:12521 ; RRID:Addgene_12521)
