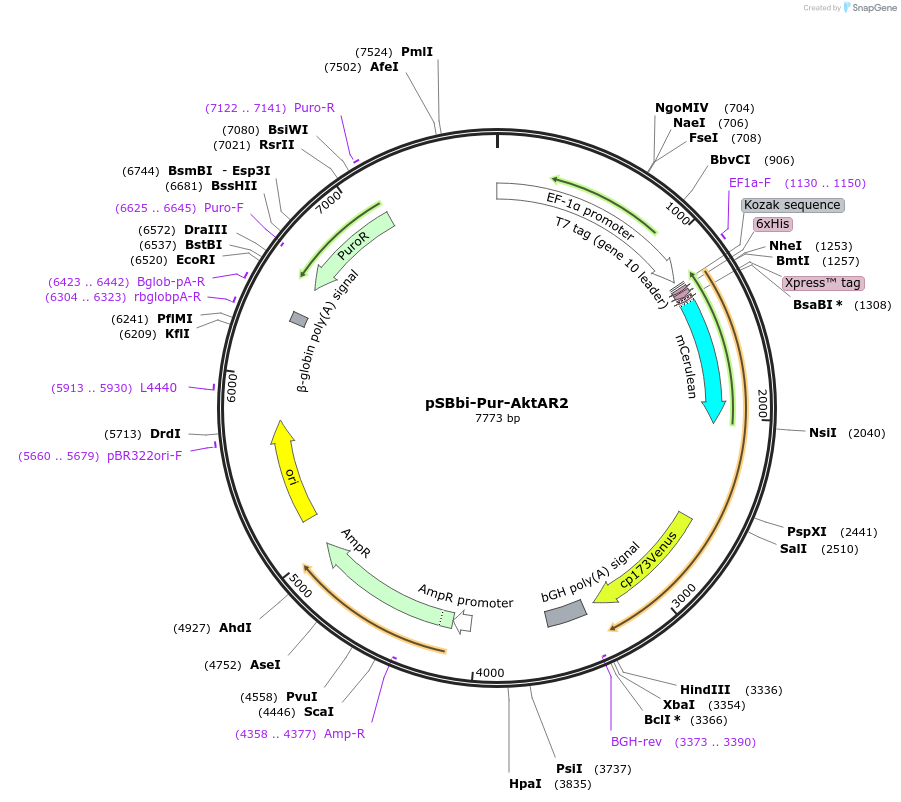

pSBbi-Pur-AktAR2
(Plasmid #125195)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 125195 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSBbi-Pur
  • Backbone manufacturer
    Addgene plasmid # 60523
  • Backbone size w/o insert (bp) 5661
  • Vector type
    Mammalian Expression ; Transposon
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    AktAR2
  • Species
    Synthetic
  • Insert Size (bp)
    2115
  • Promoter EF1a/RPBSA
  • Tags / Fusion Proteins
    • 6xHis, T7, and Xpress, mCerulean3 (N terminal on insert)
    • cpVenus[E172] (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SfiI (not destroyed)
  • 3′ cloning site SfiI (not destroyed)
  • 5′ sequencing primer GCCTCAGACAGTGGTTCAAAG
  • 3′ sequencing primer AGGCACAGTCGAGGCTGAT
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Not membrane-targeted. Insert subcloned from Addgene #64932.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSBbi-Pur-AktAR2 was a gift from Eric Davis (Addgene plasmid # 125195 ; http://n2t.net/addgene:125195 ; RRID:Addgene_125195)
