pAT-9208
(Plasmid
#124221)
-
PurposeCloning plasmid for a self-targeting gRNA library
-
Depositing Lab
-

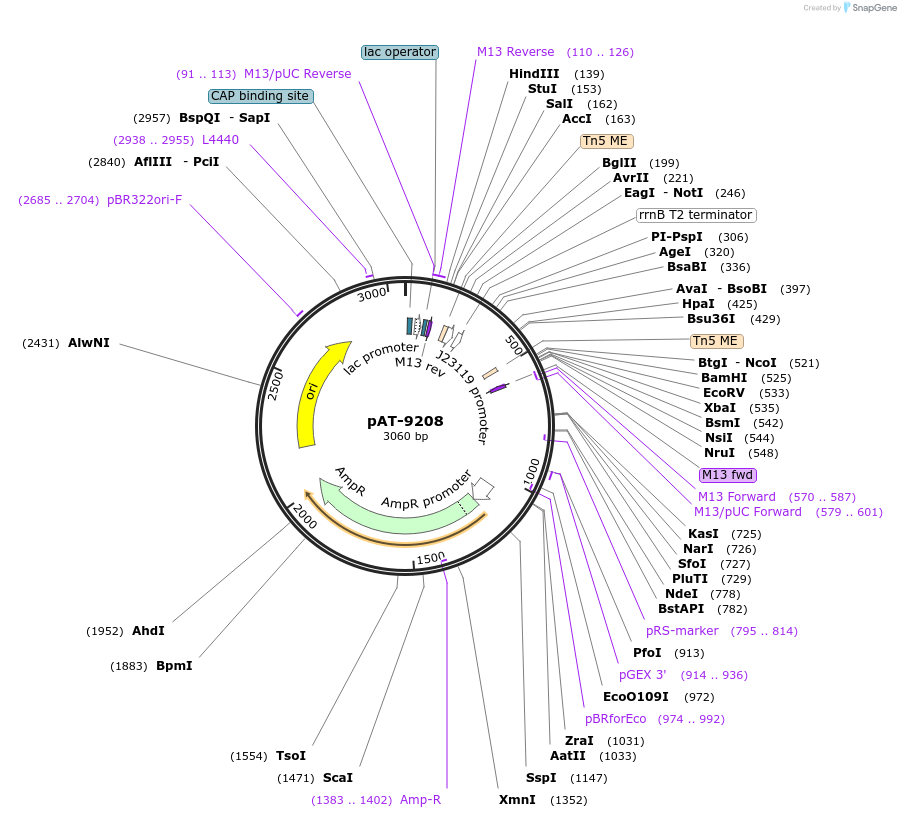

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 124221 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepUC19
-
Vector typeBacterial Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameself-targeting gRNA
-
SpeciesE. coli
- Promoter J23119
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer M13-for
- 3′ sequencing primer M13-rev (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Addgene Notes
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please note this plasmid contains Illumina 2nd step primer capture sites within the insert sequence that can affect next generation sequencing results. We suggest using sanger sequencing when working with this plasmid.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAT-9208 was a gift from Ervin Welker (Addgene plasmid # 124221 ; http://n2t.net/addgene:124221 ; RRID:Addgene_124221) -
For your References section:
A method for characterizing Cas9 variants via a one-million target sequence library of self-targeting sgRNAs. Talas A, Huszar K, Kulcsar PI, Varga JK, Varga E, Toth E, Welker Z, Erdos G, Pach PF, Welker A, Gyorgypal Z, Tusnady GE, Welker E. Nucleic Acids Res. 2021 Jan 15. pii: 6101605. doi: 10.1093/nar/gkaa1220. 10.1093/nar/gkaa1220 PubMed 33450024
