ARB347
(Plasmid #124030)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 124030 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    MTK678_001
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

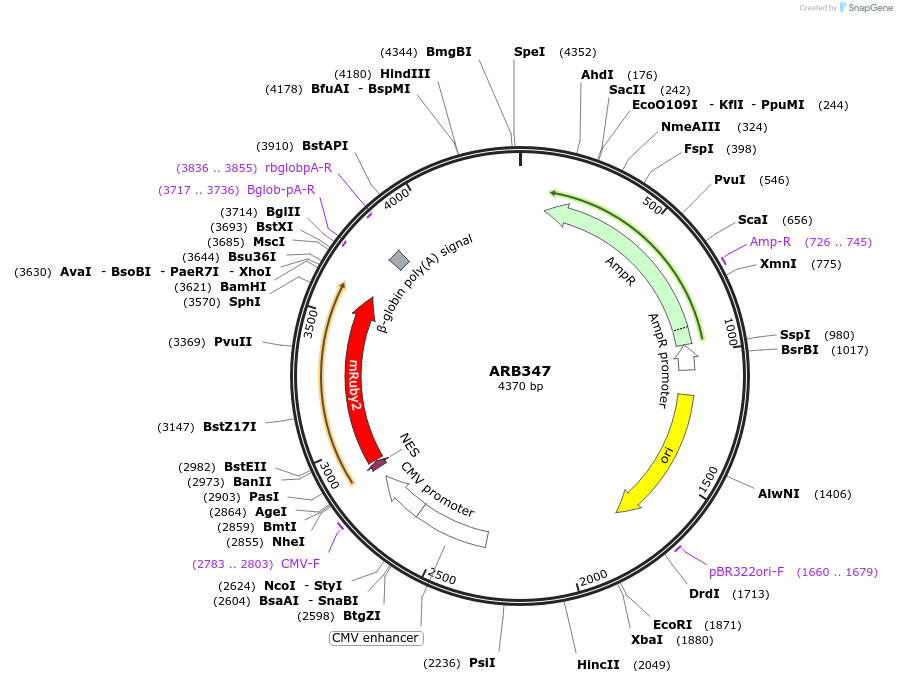

Gene/Insert

  • Gene/Insert name
    L1-B1_CMV-NES::mRuby2-rglPA_R2
  • Species
    Synthetic

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site unknown (unknown if destroyed)
  • 3′ cloning site unknown (unknown if destroyed)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Plasmid used to generate Fig .4a,b Please visit https://www.biorxiv.org/content/10.1101/506188v2 for BioRxiv preprint

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    ARB347 was a gift from Hana El-Samad (Addgene plasmid # 124030 ; http://n2t.net/addgene:124030 ; RRID:Addgene_124030)

  • For your References section:

    A Toolkit for Rapid Modular Construction of Biological Circuits in Mammalian Cells. Fonseca JP, Bonny AR, Kumar GR, Ng AH, Town J, Wu QC, Aslankoohi E, Chen SY, Dods G, Harrigan P, Osimiri LC, Kistler AL, El-Samad H. ACS Synth Biol. 2019 Nov 15;8(11):2593-2606. doi: 10.1021/acssynbio.9b00322. Epub 2019 Nov 5. 10.1021/acssynbio.9b00322 PubMed 31686495
