MTK8b_009
(Plasmid
#123896)
-
PurposeEncodes the 3' 500 bp hThal5.10-2-hg18 locus homology arm as a type 8b part to be used in the MTK system
-
Depositing Lab
-

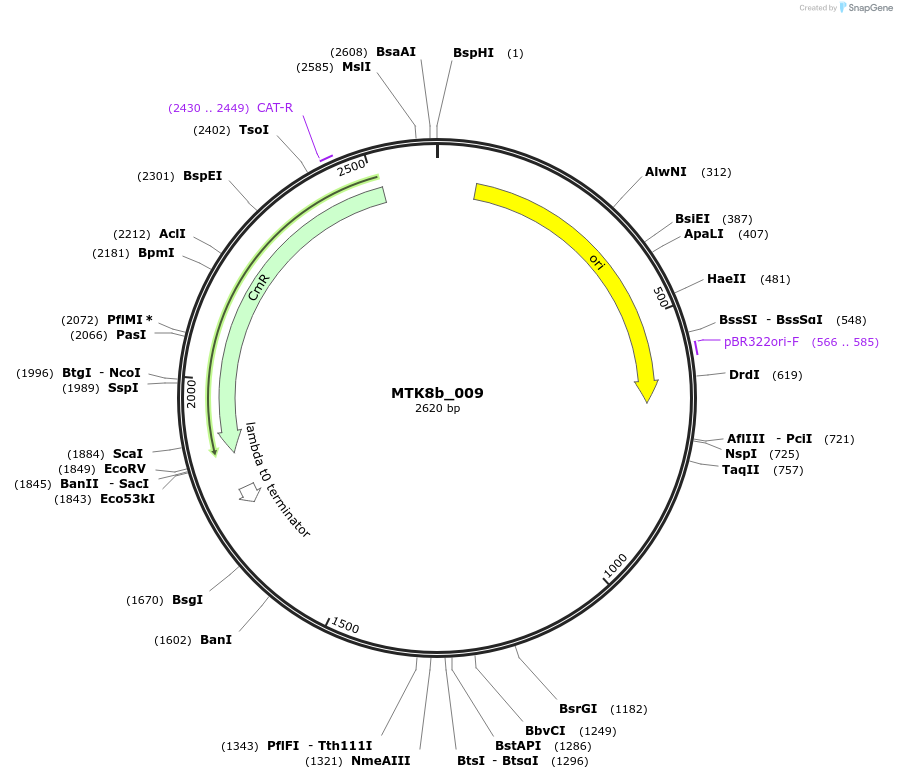

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 123896 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneMTK0_027
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameLA_hThal5.10-2-hg18
-
SpeciesH. sapiens (human)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
- 3′ cloning site unknown (unknown if destroyed)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Type 8b parts can be components of the destination backbone such as locus upstream homology arms, resistance cassette, recognition sites, and nuclear marker in the MTK Please visit https://www.biorxiv.org/content/10.1101/506188v2 for BioRxiv preprint
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
MTK8b_009 was a gift from Hana El-Samad (Addgene plasmid # 123896 ; http://n2t.net/addgene:123896 ; RRID:Addgene_123896) -
For your References section:
A Toolkit for Rapid Modular Construction of Biological Circuits in Mammalian Cells. Fonseca JP, Bonny AR, Kumar GR, Ng AH, Town J, Wu QC, Aslankoohi E, Chen SY, Dods G, Harrigan P, Osimiri LC, Kistler AL, El-Samad H. ACS Synth Biol. 2019 Nov 15;8(11):2593-2606. doi: 10.1021/acssynbio.9b00322. Epub 2019 Nov 5. 10.1021/acssynbio.9b00322 PubMed 31686495
