pZIP-hCMV-ZSGreen-P2A-Puro-IKZF3 sh2
(Plasmid
#123327)
-
PurposeLentiviral vector for expression of shRNA targeting IKZF3 from a miR30 embedded casette in the 3'UTR of ZsGreen-P2A-Puro insert
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 123327 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

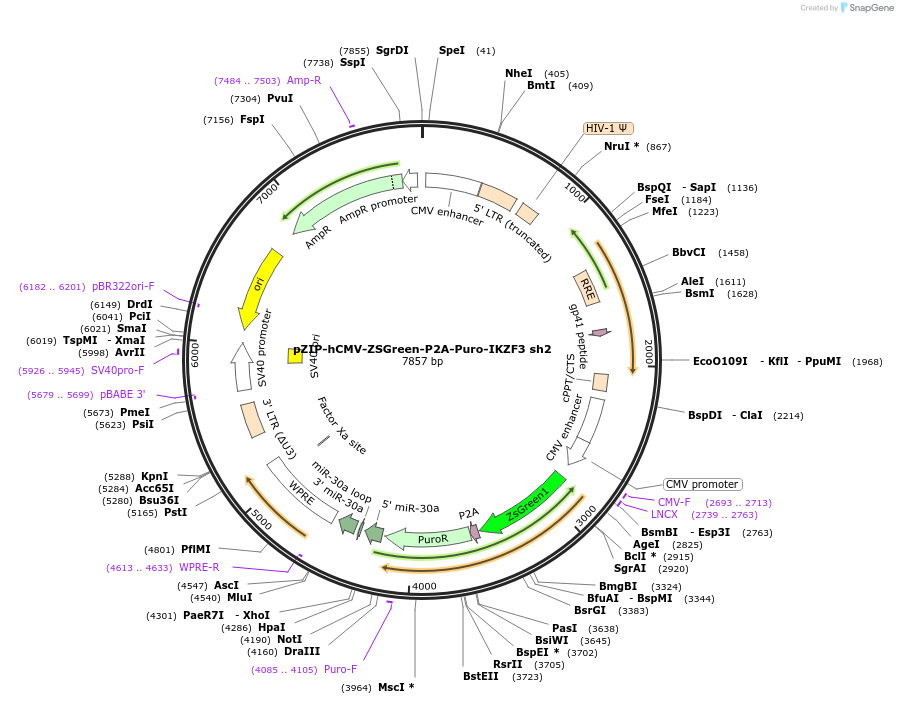

Backbone
-
Vector backbonepZIP-ZsGreen-P2A-Puro
- Total vector size (bp) 7857
-
Vector typeMammalian Expression, Lentiviral
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Stbl3
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameshRNA targeting IKZF3 embedded in miR30 backbone
-
SpeciesH. sapiens (human)
-
Insert Size (bp)670
-
Entrez GeneIKZF3 (a.k.a. AIO, AIOLOS, IMD84, ZNFN1A3)
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer -
- 3′ sequencing primer - (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pZIP-hCMV-ZSGreen-P2A-Puro-IKZF3 sh2 was a gift from Eva Gottwein (Addgene plasmid # 123327 ; http://n2t.net/addgene:123327 ; RRID:Addgene_123327) -
For your References section:
CK1alpha and IRF4 are essential and independent effectors of immunomodulatory drugs in primary effusion lymphoma. Patil A, Manzano M, Gottwein E. Blood. 2018 Aug 9;132(6):577-586. doi: 10.1182/blood-2018-01-828418. Epub 2018 Jun 28. 10.1182/blood-2018-01-828418 PubMed 29954751
