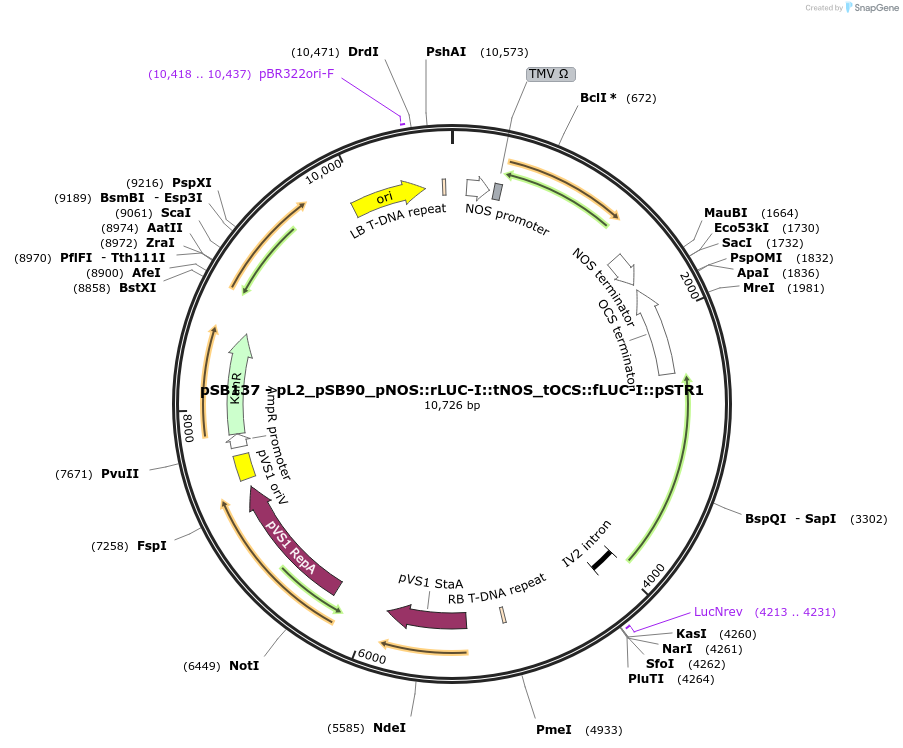

pSB137 - pL2_pSB90_pNOS::rLUC-I::tNOS_tOCS::fLUC-I::pSTR1
(Plasmid #123194)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 123194 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSB90
  • Backbone manufacturer
    Modified from pAGM4723 (Weber et al., 2011; DOI:10.1371/journal.pone.0016765) by the addition of the VirGN54D gene
  • Backbone size w/o insert (bp) 5851
  • Vector type
    Plant Expression, Luciferase

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    pNOS::rLUC-I::tNOS tOCS::fLUC-I::pSTR1
  • Species
    Synthetic
  • Insert Size (bp)
    4873

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)
  • 3′ cloning site Unknown (unknown if destroyed)
  • 5′ sequencing primer n/a
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Transient fLUC and rLUC expression vector for plants. Introns avoid expression in Agrobacteria. Increased virulence in Agro. through VirGN54D in the vector backbone.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSB137 - pL2_pSB90_pNOS::rLUC-I::tNOS_tOCS::fLUC-I::pSTR1 was a gift from Erin Cram & Carolyn Lee-Parsons (Addgene plasmid # 123194 ; http://n2t.net/addgene:123194 ; RRID:Addgene_123194)

  • For your References section:

    EASI Transformation: An Efficient Transient Expression Method for Analyzing Gene Function in Catharanthus roseus Seedlings. Mortensen S, Bernal-Franco D, Cole LF, Sathitloetsakun S, Cram EJ, Lee-Parsons CWT. Front Plant Sci. 2019 Jun 11;10:755. doi: 10.3389/fpls.2019.00755. eCollection 2019. 10.3389/fpls.2019.00755 PubMed 31263474
