pBLO ddd64.1
(Plasmid
#123121)
-
PurposeE. coli expression vector for catalytically inactivated deltaproteobacteria CasX
-
Depositing Labs
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 123121 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backboneNA
- Total vector size (bp) 5559
-
Vector typeCRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameCasX
-
SpeciesDeltaproteobacteria
-
Insert Size (bp)2955
-
MutationMutated amino acids in catalytic triad to alanine at positions 672, 769, and 935
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pBLO ddd64.1 was a gift from Jennifer Doudna & Benjamin Oakes (Addgene plasmid # 123121 ; http://n2t.net/addgene:123121 ; RRID:Addgene_123121) -
For your References section:
CasX enzymes comprise a distinct family of RNA-guided genome editors. Liu JJ, Orlova N, Oakes BL, Ma E, Spinner HB, Baney KLM, Chuck J, Tan D, Knott GJ, Harrington LB, Al-Shayeb B, Wagner A, Brotzmann J, Staahl BT, Taylor KL, Desmarais J, Nogales E, Doudna JA. Nature. 2019 Feb 4. pii: 10.1038/s41586-019-0908-x. doi: 10.1038/s41586-019-0908-x. 10.1038/s41586-019-0908-x PubMed 30718774

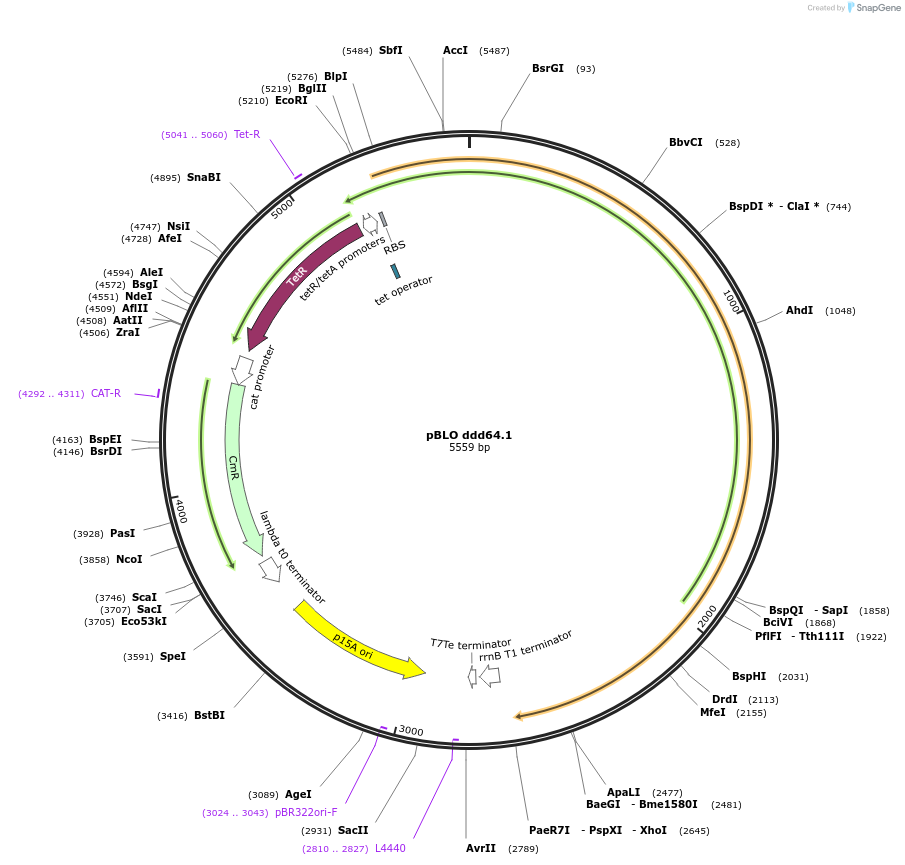

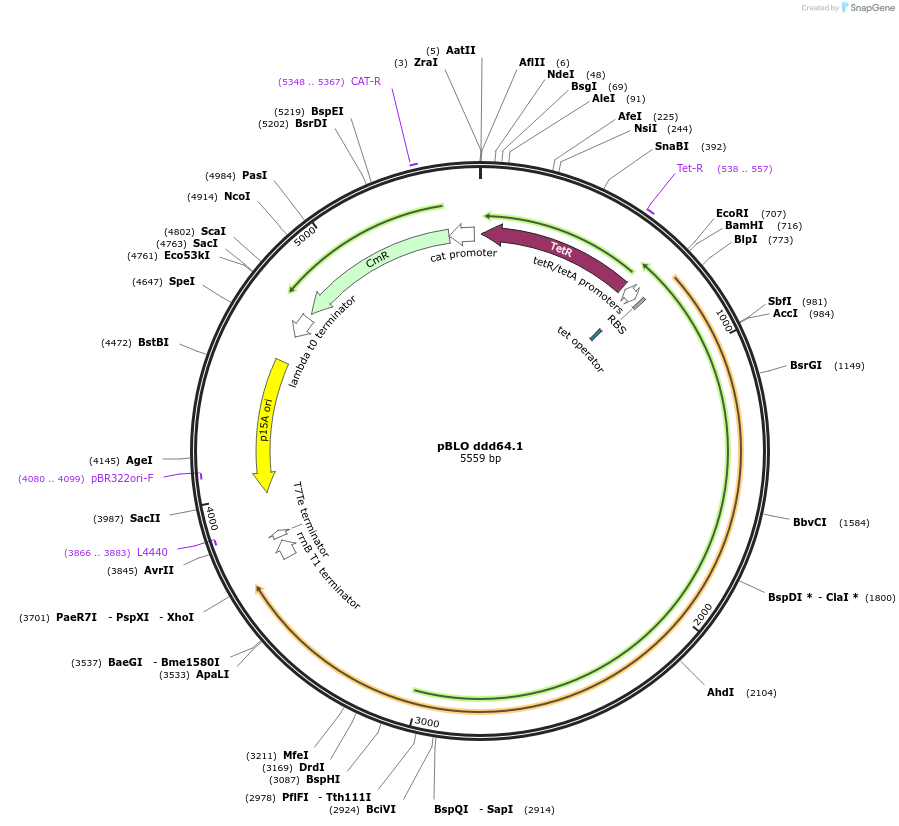

Map uploaded by the depositor.
