pAAV hSyn syph-GFP-myc-BoNT/B(1-146)-iLID
(Plasmid
#122981)
-
PurposeAAV plasmid with human synapsin promoter driving synaptophysin fused to GFP, iLID(V416I) and BoNT/B amino acids 1-146. Co-express with SSPB-BoNT(147-441, Y365A) for vPA-BoNT
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 122981 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

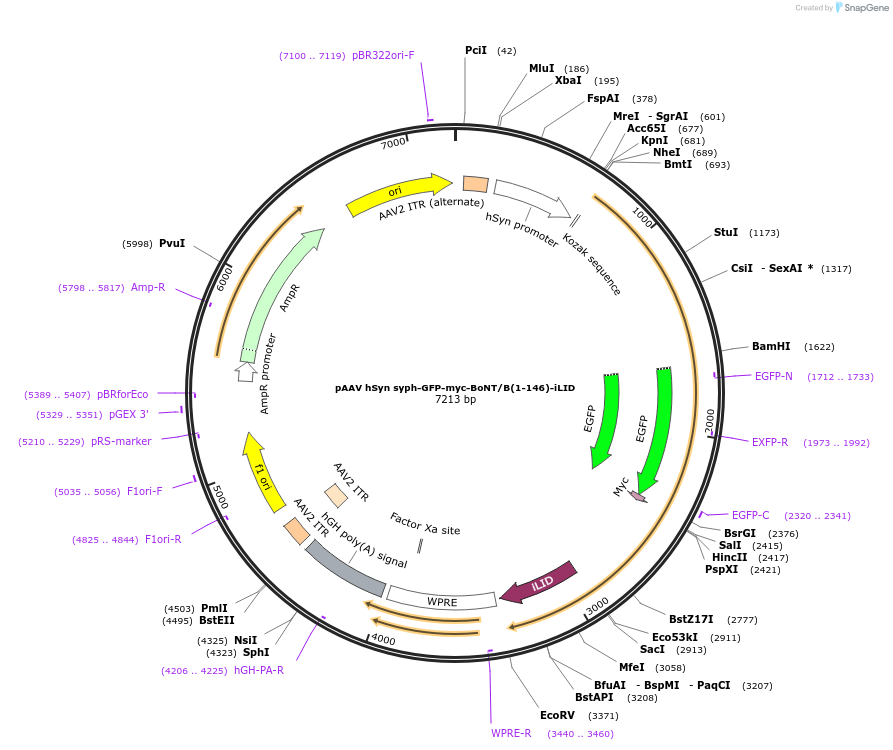

Backbone
-
Vector backbonepAAV hSyn
- Backbone size w/o insert (bp) 4500
- Total vector size (bp) 7200
-
Vector typeMammalian Expression, AAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSyph-GFP-myc-BoNT/B(1-146)-iLID
-
SpeciesR. norvegicus (rat), Synthetic
-
Insert Size (bp)2700
-
Entrez GeneSyp (a.k.a. Syp1)
- Promoter human synapsin
-
Tag
/ Fusion Protein
- GFP
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NheI (not destroyed)
- 3′ cloning site EcoRV (not destroyed)
- 5′ sequencing primer actcagcgctgcctcagt
- 3′ sequencing primer ccacatagcgtaaaaggagcaac (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byiLID was obtained from Dr. Brian Kuhlman, University of North Carolina Chapel Hill BoNT/B was a gift from Dr. Thomas Binz, Hannover Medical School
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV hSyn syph-GFP-myc-BoNT/B(1-146)-iLID was a gift from Matthew Kennedy (Addgene plasmid # 122981 ; http://n2t.net/addgene:122981 ; RRID:Addgene_122981) -
For your References section:
A Photoactivatable Botulinum Neurotoxin for Inducible Control of Neurotransmission. Liu Q, Sinnen BL, Boxer EE, Schneider MW, Grybko MJ, Buchta WC, Gibson ES, Wysoczynski CL, Ford CP, Gottschalk A, Aoto J, Tucker CL, Kennedy MJ. Neuron. 2019 Jan 15. pii: S0896-6273(19)30003-0. doi: 10.1016/j.neuron.2019.01.002. 10.1016/j.neuron.2019.01.002 PubMed 30704911
