pJL035
(Plasmid #122854)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 122854 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEX-A2
  • Backbone size w/o insert (bp) 2477
  • Total vector size (bp) 3335
  • Vector type
    Golden Gate compatible cloning vector

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    G9a SET catalytic domain, codon-optimised for Arabidopsis
  • Species
    Synthetic
  • Insert Size (bp)
    858

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Plasmid is designed for Golden Gate cloning using the enzyme BsaI.

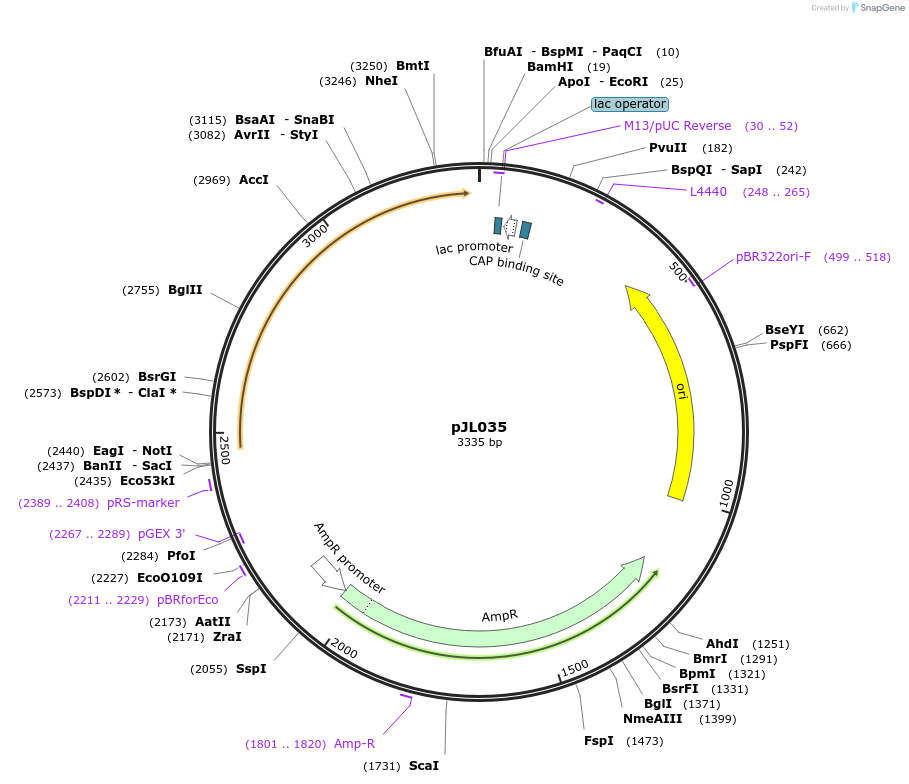

Plasmid Features (listed as bp in full plasmid sequence):
BsaI site #1 = 2451-2456bp
G9a coding sequence = 2464-3321bp
BsaI site #2 = 3330-3335bp

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJL035 was a gift from Markus Schmid (Addgene plasmid # 122854 ; http://n2t.net/addgene:122854 ; RRID:Addgene_122854)

  • For your References section:

    CRISPR-based tools for targeted transcriptional and epigenetic regulation in plants. Lee JE, Neumann M, Duro DI, Schmid M. PLoS One. 2019 Sep 26;14(9):e0222778. doi: 10.1371/journal.pone.0222778. eCollection 2019. 10.1371/journal.pone.0222778 PubMed 31557222
