Purpose(Empty Backbone) N-terminal EGFP tag. Gateway destination vector for mammalian expression.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 122842 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |

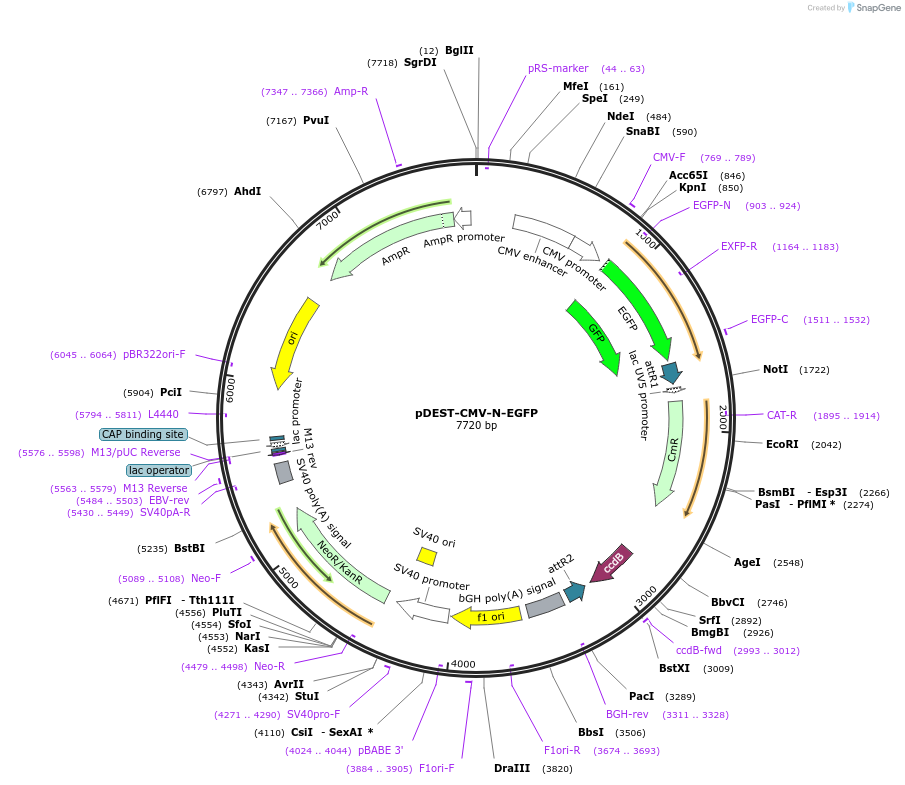

Backbone
-
Vector backbonepcDNA-DEST53
-
Backbone manufacturerLife Technologies
- Backbone size (bp) 7720
-
Modifications to backboneReplacement of cycle3 GFP with EGFP between SacI restriction sites, loss of T7 promoter.
-
Vector typeMammalian Expression ; Gateway destination
- Promoter CMV
-
Selectable markersNeomycin (select with G418)
-
Tag
/ Fusion Protein
- EGFP (N terminal on backbone)
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol and Ampicillin, 25 & 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)ccdB Survival
-
Copy numberHigh Copy
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer EGFP C F
- 3′ sequencing primer BGH Reverse (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pDEST-CMV-N-EGFP was a gift from Robin Ketteler (Addgene plasmid # 122842 ; http://n2t.net/addgene:122842 ; RRID:Addgene_122842) -
For your References section:
Redundancy of human ATG4 protease isoforms in autophagy and LC3/GABARAP processing revealed in cells. Agrotis A, Pengo N, Burden JJ, Ketteler R. Autophagy. 2019 Jan 21. doi: 10.1080/15548627.2019.1569925. 10.1080/15548627.2019.1569925 PubMed 30661429
