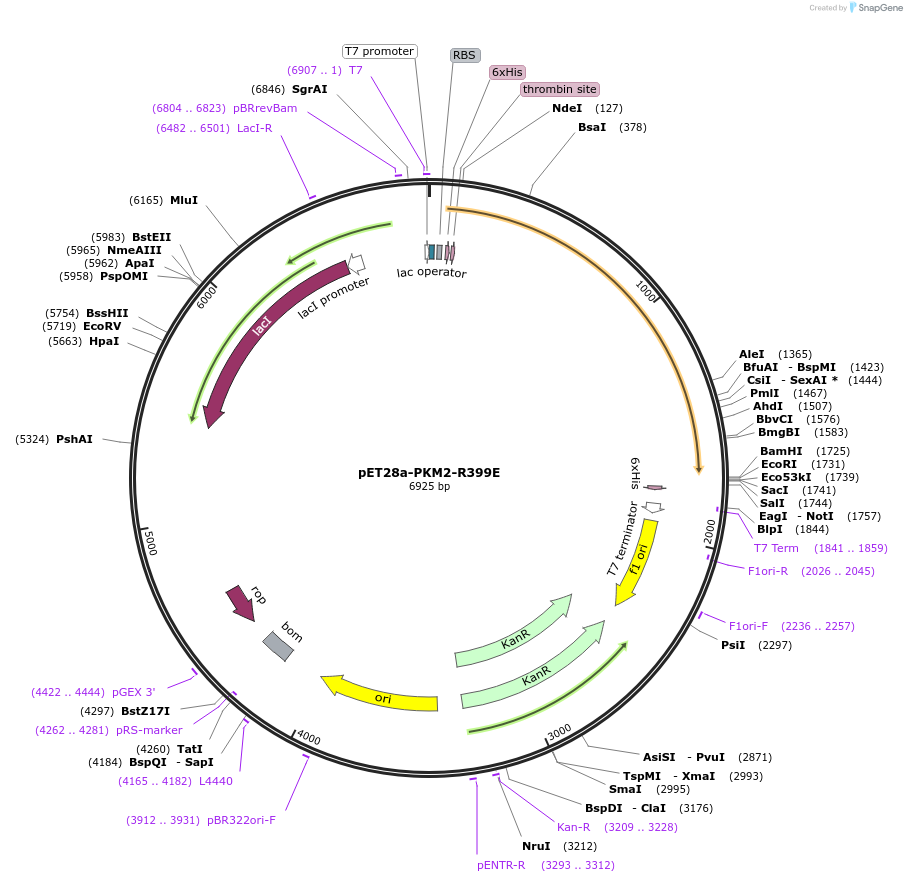

pET28a-PKM2-R399E
(Plasmid #122691)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 122691 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pET28a
  • Backbone size w/o insert (bp) 5400
  • Total vector size (bp) 7000
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Pyruvate kinase M2 isoform
  • Alt name
    PKM2
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1596
  • Mutation
    R399E
  • Entrez Gene
    PKM (a.k.a. CTHBP, HEL-S-30, OIP3, PK3, PKM2, TCB, THBP1, p58)
  • Tag / Fusion Protein
    • 6His-tag (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer T7
  • 3′ sequencing primer T7 terminator
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pET28a-PKM2-R399E was a gift from Wen-Ching Wang (Addgene plasmid # 122691 ; http://n2t.net/addgene:122691 ; RRID:Addgene_122691)

  • For your References section:

    Mutations in the PKM2 exon-10 region are associated with reduced allostery and increased nuclear translocation. Chen TJ, Wang HJ, Liu JS, Cheng HH, Hsu SC, Wu MC, Lu CH, Wu YF, Wu JW, Liu YY, Kung HJ, Wang WC. Commun Biol. 2019 Mar 15;2:105. doi: 10.1038/s42003-019-0343-4. eCollection 2019. 10.1038/s42003-019-0343-4 PubMed 30911680
